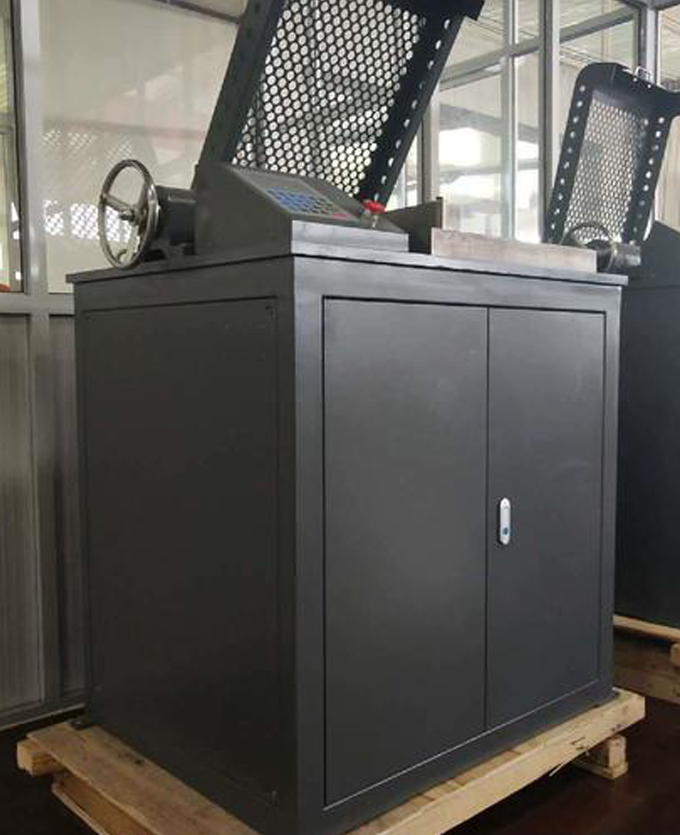

Metal material bending testing machine

Diameter range of bent steel bars (three-grade threaded steel bars)

Φ6-Φ50mm

Forward bending angle of steel bar

Any setting within 0°-180°

Steel bar reverse bending angle

Any setting within 0°-90°

Working disc speed

≤1.4r/min

Roller center distance

280mm

Working disc diameter

Φ860mm

Motor power

3.0kw

Randomly equipped with bending sleeve (mm)
HRB500
HRBF500
Can complete steel bar bending performance test (180°)

6×Ф6, 6×Ф8, 6×Ф10, 6×Ф12, 6×Ф14,
6×Ф16, 6×Ф18, 6×Ф20, 6×Ф22, 6×Ф25,
7×Ф28, 7×Ф32, 7×Ф36, 7×Ф40, 8×Φ50, a total of fifteen pieces

HRB400
HRBF400
Can complete steel bar bending performance test (180°)

4×Ф6, 4×Ф8, 4×Ф10, 4×Ф12, 4×Ф14,
4×Ф16, 4×Ф18, 4×Ф20, 4×Ф22, 4×Ф25,
5×Ф28, 5×Ф32, 5×Ф36, 5×Ф40, 6×Φ50, a total of fifteen pieces

HRB600
HRBF600
Can complete steel bar bending performance test (180°)

6×Ф6, 6×Ф8, 6×Ф10, 6×Ф12, 6×Ф14, 6×Ф16, 6×Ф18, 6×Ф20, 6×Ф22, 6×Ф25, 7×Ф28, 7×Ф32, 7×Ф36, 7×Ф40, 8×Ф50, a total of fifteen pieces

HRB400E
HRBF400E
If you need to complete the reverse bending performance test of steel bars
(90° forward bend, 20° reverse bend)

5×Ф6, 5×Ф8, 5×Ф10, 5×Ф12, 5×Ф14,
5×Ф16, 5×Ф18, 5×Ф20, 5×Ф22, 5×Ф25,
6×Ф28, 6×Ф32, 6×Ф36, 6×Ф40, 7×Φ50, a total of fifteen pieces

HRB500E
HRBF500E
If you need to complete the reverse bending performance test of steel bars
(90° forward bend, 20° reverse bend)

7×Ф6, 7×Ф8, 7×Ф10, 7×Ф12, 7×Ф14,
7×Ф16, 7×Ф18, 7×Ф20, 7×Ф22, 7×Ф25,
8×Ф28, 8×Ф32, 8×Ф36, 8×Ф40, 9×Φ50, a total of fifteen pieces

Work roll (mm)

One piece each of Φ52 and Φ68

Bend mandrel(mm)

Φ56

Overall machine dimensions

1350×1180×1100mm

weight

2000kg
