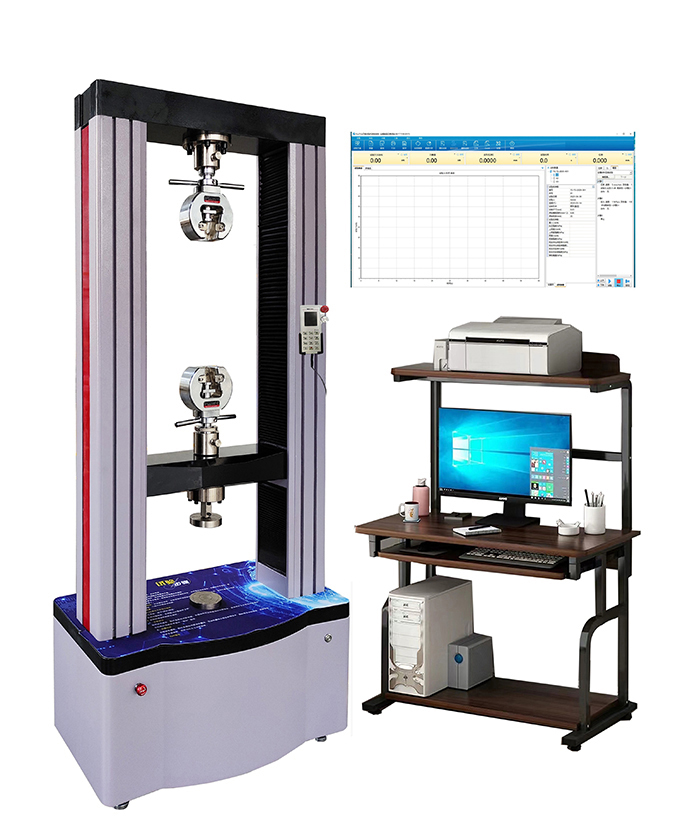

Iron ore pellet pressure testing machine

The microcomputer-controlled iron ore pellet pressure testing machine (electronic universal testing machine for iron ore pellets) meets the requirements of "GB/T14201 Determination of Compressive Strength of Iron Ore Pellets" and is used to measure the compressive strength of iron ore melted pellets.It can also be used to test and analyze the mechanical properties of other metals, non-metals and composite materials. It is widely used in foundry, metallurgy, mining and other industries. It can automatically calculate test data such as maximum test force value, fracture force value, automatic test return, and automatically print test results.

The microcomputer controlled iron ore pellet pressure testing machine (iron ore pellet electronic universal testing machine) uses an AC servo motor as the power source. The computer displays test data, test status and test curves in real time. The control of the test process is achieved through computer automatic control.

2. Main technical indicators

1) Maximum test force: 10 kN;

2) Effective measurement range of test force: 0.4~10 kN;

3) Test force measurement accuracy: ±0.5%;

4) Displacement speed control: 0.001~500mm/min continuously variable speed;

5) Test space: 0~500mm;

6) Test space width: 450mm;
