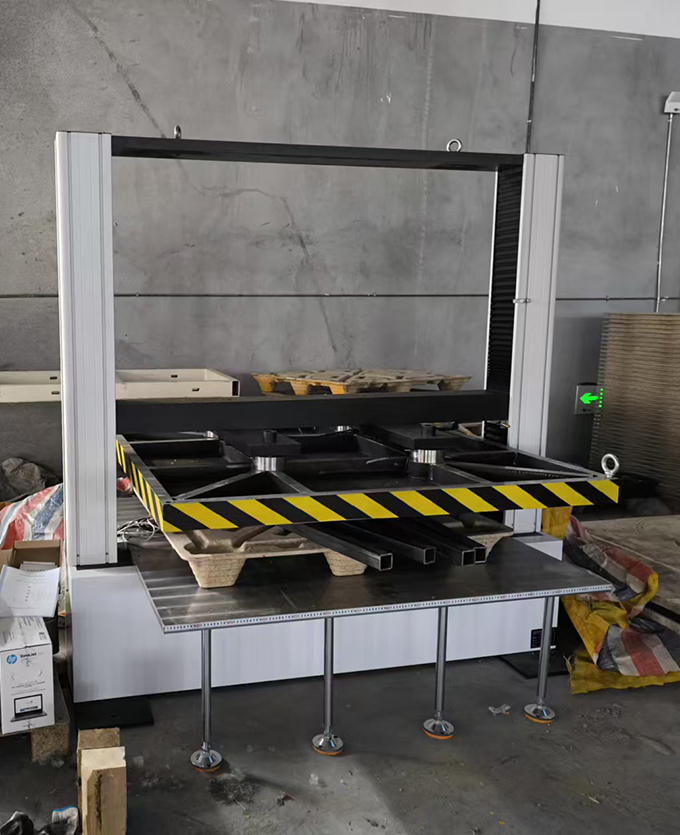

Carton compression testing machine

Equipment overview:

This machine is used to test the compressive strength of packaging structures such as cartons and containers. It uses dynamic pressure holding technology to simulate stacking tests to understand the pressure and collision resistance of product packaging during transportation and stacking.Its data can be used as an important basis for packaging design and assembly construction.The carton compression testing machine is suitable for electronics, electrical appliances, wires, hardware, bicycles, handbags, food, medicine, shoemaking, furniture and other factories whose products are packaged in corrugated cartons. It is suitable for pressure resistance, deformation and stacking tests of corrugated cartons, honeycomb board boxes and other packages.It also takes into account the pressure resistance test of plastic barrels (edible oil, mineral water), paper barrels, cartons, paper cans, container barrels (IBC barrels) and other containers.

Features:

1. The machine structure adopts advanced paint-treated aluminum extrusion sealing plate with built-in high-precision, low-resistance, gap-free double ball screws and guide columns, which improves load efficiency and structural rigidity;
2. The control system uses Panasonic digital AC server to control AC servo motors with high response frequency to ensure high efficiency of the transmission system, smooth transmission, low noise, and speed accuracy controlled within ±0.2%;
3. The microcomputer system uses a commercial computer as the main control computer, and cooperates with the company's test software to complete all test parameter settings, working status control, data collection and analysis processing, result display and printout;
4. The product performance is stable and reliable, the measurement accuracy is high, the test software is powerful, and the operation is simple and easy to understand.

Meet the criteria:

[Test Standard]: GB/T4857.4GB/T4857.16ISO2872, ASTMD642
[Production specification]: GB/T16491, TAPPI-T804, JIS-Z0212

Application industries:

It is an ideal testing and research equipment suitable for various factories and enterprises, technical supervision departments, commodity inspection agencies, scientific research institutes, universities and other departments.

Technical parameters:

Accuracy level: 0.5 level
Load: 10KN (the force value within 10KN can be changed at will);
Effective force measuring range: 0.2/100-100%;
Test force resolution, load 500,000 yards; there are no binnings inside and outside, and the resolution remains unchanged throughout the process.
Effective test width: 1000x1000 (can be specified)
Effective stretching space: 700mm
Test speed: 0.01~500mm/min
Speed accuracy: within ±0.5% of the indication value;

Displacement measurement accuracy: within ±0.5% of the indication value;

Deformation measurement accuracy: within ±0.5% of the indication value;
Software measurement and control system: fully digital closed-loop control system, which can realize constant stress, constant strain, constant displacement, and test functions
Test bench lifting device: fast/slow speed control, adjustable;
Test bench safety protection device: software automatic diagnosis, electronic limit;
Test bench return: manual can return to the initial position of the test at high speed, automatic can return automatically after the test is completed;
Overload protection: automatic protection when the load exceeds 10%;
Optional equipment: a set of brand Lenovo LCD computers; a set of HP color inkjet printers;
