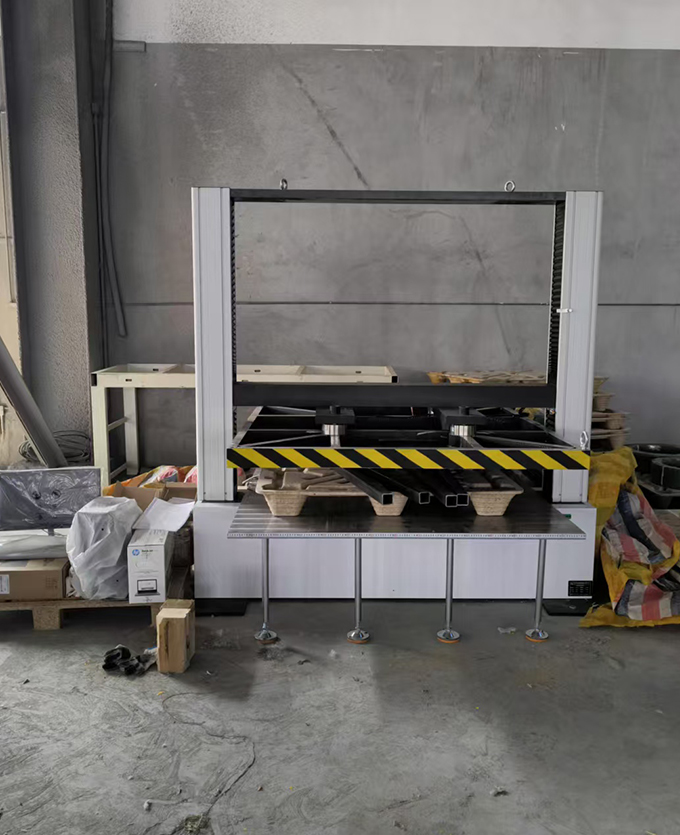

Pipe ring stiffness testing machine

The ring stiffness testing machine is widely used to determine the ring stiffness of thermoplastic pipes and fiberglass pipes with annular cross-sections. The ring stiffness is determined by the measured force value and deformation value during constant speed deformation.It has key speed adjustment, digital display of test force displacement, and curve display functions. It has peak hold, automatic shutdown on damage, and automatic overcurrent and overload protection functions.It can complete pipe ring stiffness, ring flexibility, flatness, bending, weld tension and other tests.The ring stiffness testing machine has all the functions of an electronic universal testing machine and can be configured with tension, compression, bending, shear and other fixtures for tension, compression, bending, shear and other tests on various materials.

1. Test standards met:

GB/T9647 "Determination of ring stiffness of thermoplastic pipes"

GB/T19472.1 "Polyethylene (PE) structural wall piping system for underground use Part 1: Polyethylene double-wall corrugated pipes"

GB/T19472.2 "Polyethylene (PE) structural wall piping system for underground use Part 2: Polyethylene double-wall corrugated pipes"

GB/T16800 "Core foamed rigid polyvinyl chloride (PVC-U) pipes for drainage"

GB/T18477 "Rigid polyvinyl chloride (PVC-U) double-wall corrugated pipes for underground drainage"

GB/T21238 "Glass fiber reinforced plastic sand-filled pipe"

GB/T 165 "High-density polyethylene wrapped wall structural pipes"

GB/T 838 "Glass fiber wound reinforced thermosetting resin sand-filled pressure pipe"

Provisions of GB/T16491, GB/T5836 and other standards

2. Main technical parameters:

1. Test force: 0-300KN (optional)

2. Measuring range: 2%-100% of test force

3. Testing machine accuracy level: Level 1/0.5

4. Test force accuracy: better than ±1% of the indicated value

5. Crossbeam displacement measurement: resolution is 0.01mm

6. Deformation accuracy: better than ±1%

7. Speed adjustment range: 0.05-500mm/min

8. Test space: can be customized

9. Host form: portal frame structure
