HYMW-2 high frequency reciprocating rotation friction testing machine

This instrument can be widely used in research on material surface processing technology, evaluation of material failure and reliability, and industrial product quality inspection and control.This device is equipped with automatic shutdown protection, easy operation and high measurement accuracy.

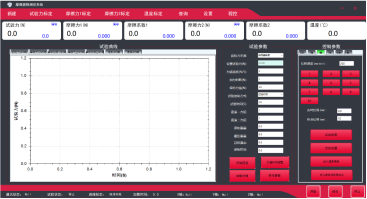

This testing machine is used to test the friction and wear properties of materials, material surface coatings and component surfaces.Can provide a wide load range and rotation speed.It can test different friction pairs of ball-disk and pin-disk. The computer automatically detects the different friction modes. All measured parameters, friction coefficient, friction force, load and torque can be measured during the test and displayed simultaneously in the form of data and graphics.Install an environmental control system to adjust the test temperature and ambient atmosphere for testing.

This instrument can be widely used in research on material surface processing technology, evaluation of material failure and reliability, and industrial product quality inspection and control.This device is equipped with automatic shutdown protection, easy operation and high measurement accuracy.

1.Main technical indicators

Technical parameters

Test load range 10~300N (automatic loading) Accuracy: 0.5% F.S

The test speed is adjustable from 5 to 3000rpm (stepless speed regulation)

Test reciprocating frequency 0-20HZ (accessories can be used for reciprocating friction tests)

Reciprocating stroke 1-20mm

X-axis movement distance is adjustable from 3 to 25mm

Z-axis lifting height is adjustable from 0 to 100mm

Friction diameter is adjustable from Φ6 to Φ40mm

Upper sample size range Ф3～Ф6mm Ball or pin, pin length 10～15mm (can be processed according to user requirements)

Friction force measurement range ≦100N

Friction coefficient measurement accuracy 0.2%F.S

Environmental box temperature: room temperature ~300℃

Friction force measurement range: 0~100N

Friction system measurement accuracy: 0.2% FS (full scale)

Friction environment (liquid): environmental box (stainless steel or tetrafluoroethylene)

Overall dimensions mm: 900*500*700

Weight: 100kg

2.module configuration (One module comes standard)

1.reciprocating module

lSample size: (8～35)×(8～60)×(1.5～12)(mm×mm×mm)

l Number of reciprocations: no limit

l Stroke: 1～20mm

l Frequency: 0～30Hz

(Remarks: Stroke and frequency selection: frequency 2Hz, stroke not exceeding 10mm; frequency 10Hz, stroke not exceeding 5mm; frequency 30Hz, stroke not exceeding 3mm; during dry friction test, load not exceeding 100N)

2.Rotation module

l Sample size: Φ10～Φ53mm

lSample thickness: 2~10mm

lRotation radius: 3~20mm

lTest speed: 10～1000 r/min Accuracy ±1r/min

Four.Acceptance, installation, commissioning and training

1. Acceptance

1.1 The equipment shall be pre-accepted first and then accepted.Pre-acceptance is carried out on the supplier's side, and acceptance is carried out on the ordering side.

1.2 Acceptance criteria: The instruction manual and agreement shall be used as the basis for acceptance.

2. Installation and debugging

After the equipment arrives, the orderer completes preliminary unpacking and installation under the guidance of the supplier, and the supplier comes to install and debug it (once).

3. Personnel training

The supplier will come to provide technical training to the ordering personnel (one time in total with installation and debugging), so that the trainers can master the operation, adjustment and basic troubleshooting of the testing machine; later new personnel training will be provided by the supplier's video guidance (charged door-to-door training is provided).

Six, quality assurance

Within one year from the date of official delivery of the testing machine, the supplier will provide timely and free maintenance services for all types of product failures.;Any damage to various parts not caused by humans will be replaced promptly and free of charge.If there is a problem with the product outside the warranty period, only the component cost will be charged.Lifetime service.
