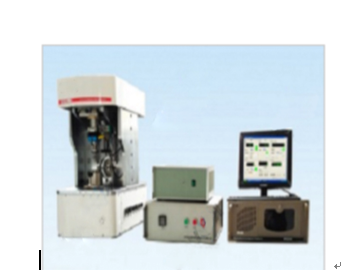

MXw-1 Rotating Reciprocating Friction and Wear Testing Machine

Huayan MXw-1 rotary reciprocating friction and wear testing machine is a new friction and wear testing machine product. It is a widely used reciprocating friction and wear testing machine. It is mainly used to study the friction properties of materials or surface coatings. The equipment has the advantages of stable and reliable reciprocating stroke adjustment, wide adjustment range, high friction force measurement accuracy, and diverse test forms.

The main friction pair of this machine adopts standard pin-disc friction, and ball friction can be optionally configured. Functionally, it can also expand the selection of various friction pairs such as ball-disk-pin-disk reciprocation, rotation, and ring-block friction.The main machine of the testing machine adopts computer detection and control. The special friction and wear testing machine measurement and control software developed by Hengxu based on high-speed industrial control can draw various parameter curves in real time. The point collection frequency is high and the safety protection is perfect. It effectively realizes the dynamic and effective detection of the process and improves the measurement accuracy of friction force, test force and other parameters.The software is equipped with parameter over-preset shutdown or alarm protection.The instrument is exquisitely designed, easy to install and debug, and the software interface is clear and user-friendly, making it easy to operate.

2. Main technical parameters

1Maximum test force 1000N, error ±1%

2. Loading method: closed-loop software, automatic loading

3The maximum force value of the load cell is 100kg

4 reciprocating frequency 0～20Hz

5Linear speed 0.1m/min～10m/min, based on stroke calculation, infinitely adjustable, error ±5%

6 Friction form: surface-to-surface friction of pin and disk, optional additional equipment (rolling friction of column and disk, friction of ball and disk line;)

7Reciprocating stroke 0～20mm

8. Test temperature: room temperature ~ 200℃, error ±2℃, multi-stage program setting (optional additional module)

9 Temperature measurement method PT100/thermocouple

10 Online grinding measurement photoelectric measurement (optional add-on module)

11Wear amount measurement resolution 0.01mm

12Lifting height 0～100mm

13 Guide rail accuracy △C is not higher than 5μm, △D is not higher than 8μm

14 time display mode and control 10S-9999H (frequency and reciprocating times mode)

15 data processing comes standard with a dedicated computer processing system

16 Friction force measurement method Piezoelectric dynamic measurement

17 Lubrication conditions dry friction, medium lubrication friction

18 optional extended functions: chemical corrosion friction module, current-carrying friction module, ring block module, and rotation module (all functions are optional)

19 drive motor power 2KW

20 software functions The equipment configuration software can realize the integrated display of load, friction force, friction temperature, reciprocating frequency, and friction coefficient; draw each parameter curve in real time and save real-time data
