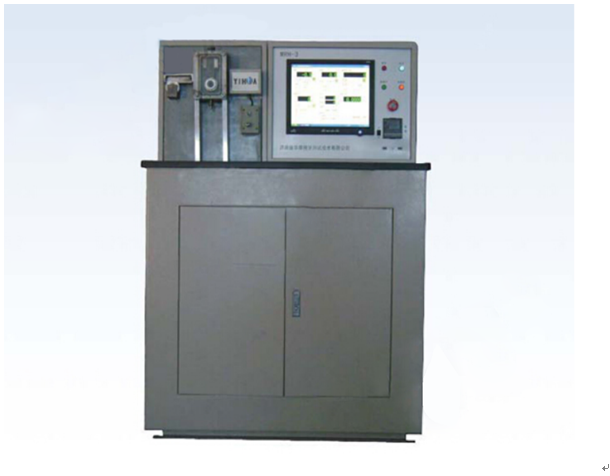

Home page >> Product display >> Friction and wear testing machine >> MHK-1 high speed ring block friction and wear testing machine
1. Main uses
The MHK-1 friction and wear testing machine can conduct wear resistance testing of various metallic materials and non-metallic materials (nylon, plastic, etc.) and coatings under sliding friction conditions, and can simulate friction and wear testing of various materials under different working conditions such as dry friction and wet friction.
The MHK-1 friction and wear testing machine adopts a color touch screen control method, which can set and display the spindle speed, revolutions, test force, friction torque, friction coefficient, test time, temperature and other test parameters in real time. It can collect test data in real time and draw the corresponding test curve.
2. Applicable standards
GB 3960-2016 "Plastic sliding friction and wear test method"
3. Main technical parameters
Project name | Technical indicators |
Test force loading range | 10～1000N |
Relative error of test force above 20% of maximum test force | ≤±1% |
Relative error of test force below 20% of maximum test force | ≤±2N |
Test force display resolution | 1N |
maximum friction torque | 4000N.mm |
Relative error of friction torque indication | ≤±2% |
Friction torque display resolution | 1N.mm |
Spindle speed range | 100～1000r/min |
Testing machine time display and control range | 1～99999s or min |
Testing machine revolution display and control range | 0~999999999 |
Host rated power | 1.1kW |
Overall dimensions (length × width × height) | About 860mm×400mm×660mm |
