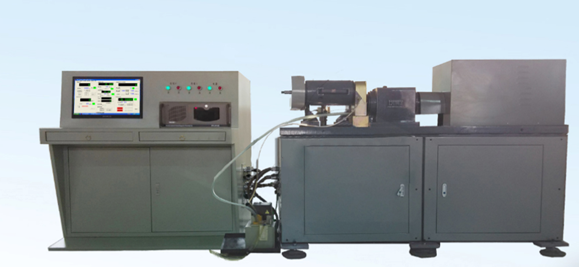

GPM-60 rolling fatigue friction and wear testing machine

1.Product use

The GPM-60 microcomputer controlled rolling contact fatigue test bench is mainly used to simulate the friction failure test of rolling contact materials. A constant load is applied to the rolling or rolling plus sliding contact sample, so that the contact surface is subjected to cyclic line and point friction contact pressure.Tests are carried out by controlling and changing parameters such as load, speed, slip rate, time, friction partner material, surface roughness, hardness, etc. to evaluate the friction fatigue life of the material.

The machine has a horizontal frame structure, and is controlled by an AC servo motor for loading and rotation. Each test parameter can be set in units. It is easy to operate and the test readings are accurate and reliable. Each parameter can be easily controlled through a computer. It can display friction torque-time, test force-time, friction coefficient-time, vibration signal-time and other curves in real time, and record, save, and print test curves.

2, main technical parameters

①Maximum test force: 60kN, infinitely adjustable

②Relative error of test force indication: ±1%

③ Long-term maintenance indication error of test force: ±1% F.S

④Maximum test torque: 75N.m

⑤ Relative error of torque indication: ±1%

⑥Test speed: 30~1500r/min, infinitely adjustable

⑦Test time control range: 1～99999s/min

⑧Slip rate: using servo motor, the slip rate can be set arbitrarily

⑨Test revolution display and control range: 999999999

⑩Sample cooling and lubrication circulation system: oil lubrication circulation cooling, water lubrication circulation cooling and forced air cooling

⑪Friction pair shape and contact form: radial line contact and point contact of wheel sample
