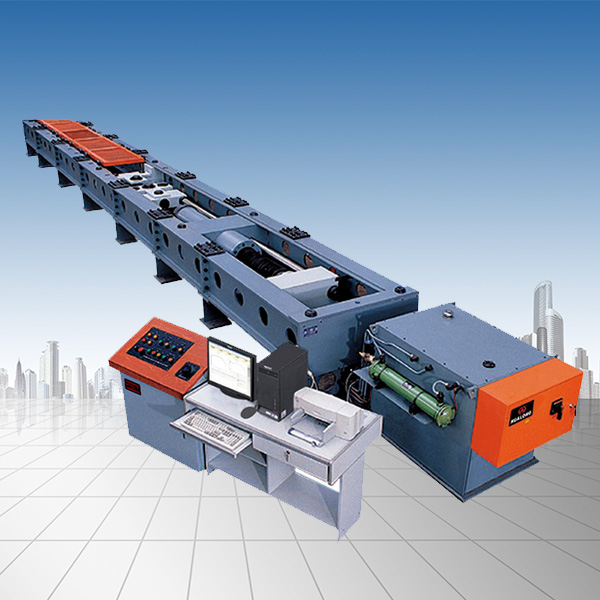

Wire rope breaking force horizontal tensile machine

This machine is suitable for tensile performance testing of large specimens such as jointless steel wire ropes, special steel wire ropes, wire rope locks, lifting chains, anchor chains, etc.This machine is mainly composed of a host machine (frame structure), fixed beams, movable beams, loading system and related test software components.Adding a steel frame structure changes the vertical test into a horizontal test, which increases the tensile space (can be increased to more than ten meters, which is impossible for vertical tests).

Test force measurement range: 10KN-500kN 20KN-1000kN 40KN-2000kN
Test force indication accuracy: ±1%
Displacement measurement resolution: 0.001mm
Test speed: 0-80mm/min
Slide head no-load fast forward speed: not less than 200mm/min
Test space: 500-6000mm (with step adjustment of 500mm)
Piston stroke: 1100mm
Working center height: 350mm
Host overall dimensions: 9100x1300x600mm
