Mask tensile testing machine

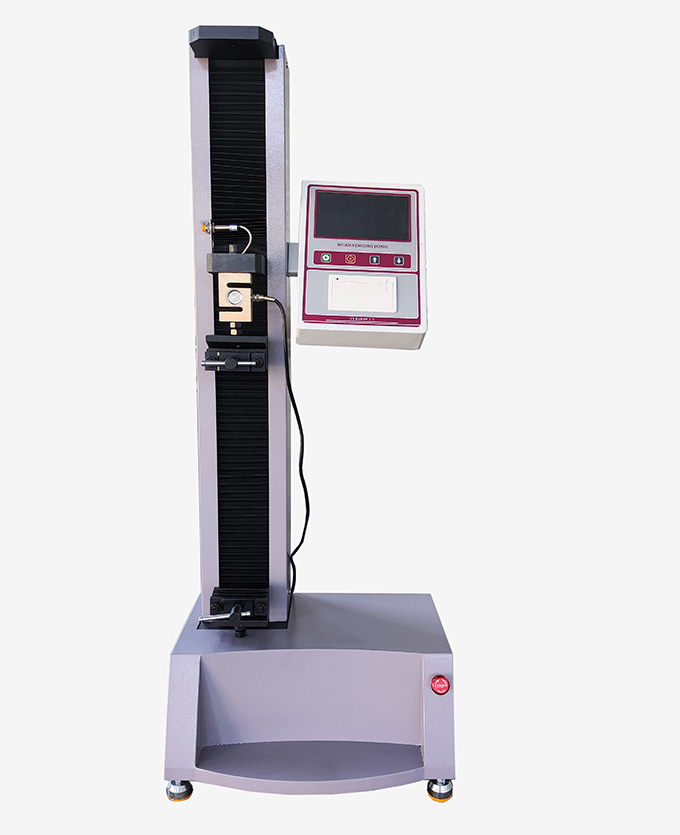

The mask tensile testing machine is suitable for testing equipment of non-woven fabrics, industrial masks, medical masks, ordinary masks, N95 masks, medical protective clothing and goggles, etc.It can be used for a variety of tests such as puncture, tensile strength, tensile, peeling, shearing, etc., and can meet standards and industry standards such as GB, ISO, JIS, ASTM, DIN, JG, JT, YB, QB, YD, YY, QC, SY, SL, BB, HG, etc.The testing machine has a powerful CNC display system and microcomputer control processing system. The LCD CNC can also set the required parameters, curves, displacements, and force values. The required parameters can be dynamically displayed on the LCD digital display. The whole process of data collection is not divided into stages. Imported servo motors and Taiwanese industrial machine reducers are used to drive the ball screws to move the entire machine table up and down. The balanced and stable features greatly extend the service life and efficiency of the testing machine. It can be connected to a computer to achieve full computer control and print standard test reports.

According to standards:

GB 19083-2010 "Technical Requirements for Medical Protective Masks", GB 19083 Mask Tension Testing Machine, according to GB 19083-2010 Technical Requirements for Medical Protective Masks, Standard 4.3 Mask Belt 4.3.2 Method Test, there should be sufficient strength to fix the position of the mask.The breaking strength of the connection point between each mask strap and the mask body should be no less than 10N.

Technical parameters:

Type: LCD digital display instrument, microcomputer control, both configurations are available to meet the requirements of different enterprises.

1. Specification model: HY2000

2. Test load: It can be changed at will within 2000N;

3. Force measurement accuracy level: 0.5;

4. Effective force measurement range: 0.2%-100%

5. Force measurement accuracy: within ±0.5% of the indicated value;

6. Test force resolution: ±1/500000 of the maximum test force

7. Test speed adjustment range: 0.001-500mm/min

8. Speed accuracy: within ±0.5% of the indicated value;

9. Deformation measurement range: 0.2%-100%FS;

10. Deformation accuracy: within ±0.5% of the indication value;

11. Deformation resolution: 1/250000 of large deformation (the resolution remains unchanged throughout the process);

12. Displacement accuracy: within ±0.5% of the indication value;

13. Displacement resolution: 0.5µm;

14. Safety device: electronic limit protection;

15. Overload protection: automatic protection when the load exceeds 10%;

16. Data collection frequency: 200 times/sec;

17. Effective test stroke: 600mm;

18. Effective test width: 120mm;

19. Power supply motor: single-phase AC 220V±10%;

20. Host weight: 150kg.

Detection method

YY/T0969-2013 "Disposable Medical Masks"

YY/T0969 Mask Strap Tensile Testing Machine, tested according to YY/T0969-2013 Disposable Medical Mask Standard 4.4.2 method, the breaking strength of each mask strap and the connection point of the mask should not be less than 10N.

According to 5.4 mask belt detection method:

5.4.2 Randomly select 3 samples for testing.Measure with a static pulling force of 10N for 5 seconds, and the results shall comply with the requirements of 4.4.2.

GB 19083-2010 "Technical Requirements for Medical Protective Masks"

GB 19083 Mask tensile testing machine

According to GB 19083-2010 Technical Requirements Standard for Medical Protective Masks 4.3 Mask Belt and 4.3.2 Method Detection, there should be sufficient strength to fix the position of the mask.The breaking strength of the connection point between each mask strap and the mask body should be no less than 10N.

According to 5.3 mask belt detection method:

5.3.1 Number of samples: Take 4 masks, open the package, 2 of them will be temperature pre-treated, and 2 will not be pre-treated.

5.3.2 Temperature pretreatment conditions:

The preprocessing conditions are:

a) Place in 70℃±3℃ environmental test chamber for 24h;

b) - Place it in a 30℃±3℃ environmental test chamber for 24 hours.

After temperature pretreatment, it should be restored at room temperature for at least 4 hours.

5.3.3 Through visual inspection and tensile test device measurement, the results shall comply with the requirements of 4.3.GB/T32610-2016 "Technical Specifications for Daily Protective Masks" GB/T32610 Breakage strength testing machine (tensile testing machine, tensile testing machine) for masks and the connection between mask straps and mask body According to GB/T32610-2016 Technical Specifications for Daily Protective Masks

5.3 Intrinsic quality Table 2 Requirements for intrinsic quality indicators: Breaking strength of the connection between the mask and the mask belt and the mask body/N ≥ 20

According to 6.9 Test method for breaking strength of masks and the connection between mask belt and mask body

6.9.1 Take 5 mask samples.

6.9.2 Follow the regulations of GB/T13773.2.Stretching speed 100mm/min.The test hook is installed on the upper clamp of the tensile instrument. During the test, the mask strap is hung vertically on the test hook. The main body of the mask is clamped axially in the lower clamp and is loosely clamped.

6.9.3 Test hook: made of steel material, strip shape, width (10±0.1) mm, thickness (2±0.1) mm, one end bent into a right-angle hook shape, the length of the hook part is at least (12±0.1) mm, and the edge of the hook should be smooth.The test hook should be easily installed in the clamp of the tensile tester.See picture below:

6.10.2 Test equipment

6.10.2.1 The measuring range of the material testing machine is 0N-1000N, and the accuracy is 1%.

6.10.2.2 The clamp should have appropriate structure and tightness.

6.10.2.3 The timer accuracy is 0.1s.

6.10.3 Test methods

Use appropriate clamps to fix the exhalation valve cover and mask body of the test sample respectively (the fixing point should be reasonably close to the corresponding connection part).Start the material testing machine, apply axial tension to 10N, continue for 10s, and record whether fracture, slippage and deformation occur.
