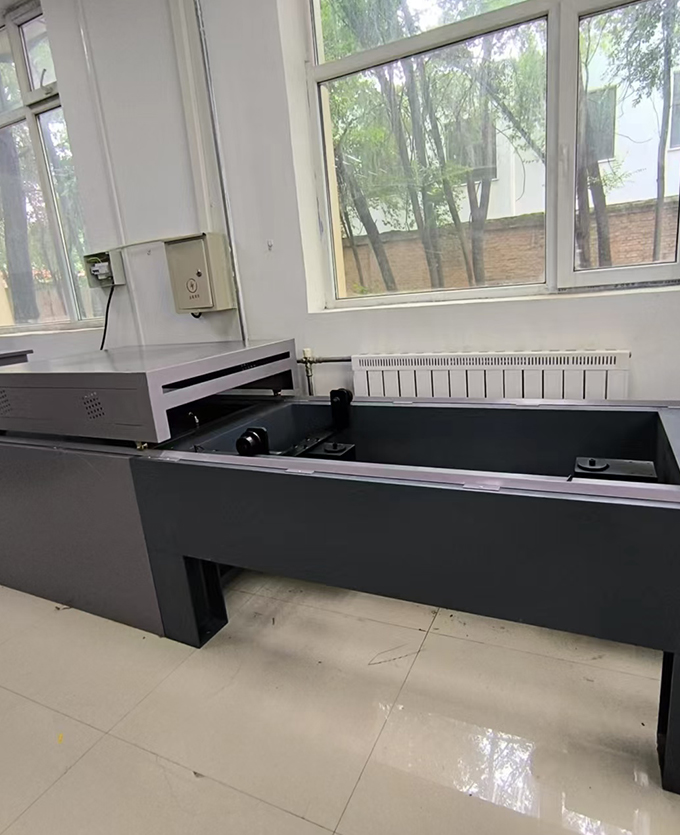

Mining wire rope breaking force testing machine

The mining wire rope horizontal tensile testing machine is mainly used to test mechanical properties such as breaking strength, tensile strength, elongation at break, elongation, tensile deformation and other mechanical properties of various steel wire ropes such as suspension bridge ropes, mining wire ropes, load-bearing ropes for overhead ropeways, traction ropes for transmission devices, and elevator ropes.

According to standards
GBT 16762 General purpose wire rope sling characteristics and technical conditions
GBT 20118 General purpose steel wire rope
GB-T_8358 Steel wire rope breaking tensile test method
MT 716 Technical conditions for acceptance of steel wire ropes for important purposes in coal mines
Features
1) It adopts a frame structure horizontal main machine, and the servo motor drives the ball screw to add force.
2) High-precision tension and compression load sensors measure force, and photoelectric encoders measure displacement.
3) Special pin-type stretching attachment.
4) Moving the beam can facilitate the adjustment of the test space.
5) Using servo control technology, it has closed-loop control loops such as test force and displacement, and can be loaded in stages.The microcomputer automatically collects data and performs data processing.
Technical parameters
1. Maximum test force 600kN (can be adjusted as needed)
2. Test force measurement range 120-600kN
3. Relative error of test force indication ±1%
4. Tensile test space 5000mm (can be adjusted as needed)
5. Displacement measurement range 0-1000mm
6. Host size (length*width*height) 6800mm*950mm*700mm
