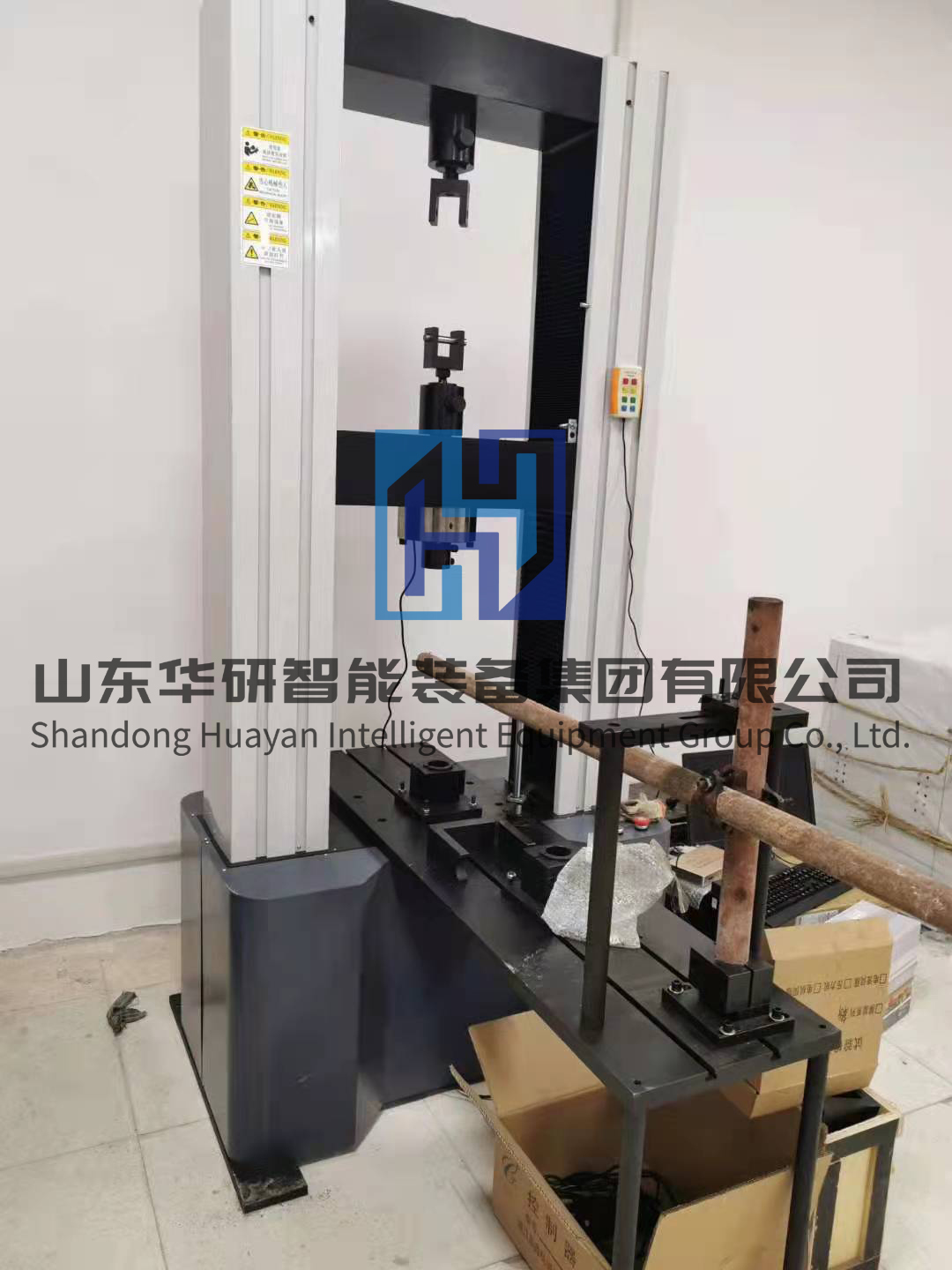

Microcomputer controlled scaffold fastener testing machine

WDW-200 scaffold fastener universal testing machine is a classic and practical model developed by our company, and it is also the mainstream model currently produced.Through two new upgrades, design and development, the host structure and measurement and control system have been significantly upgraded, with a more reasonable structure and more complete functions. It is a new generation of electronic universal testing machine for steel pipe fasteners with leading technology in the industry.

This testing machine consists of four columns and two precision ball screws to fix the upper beam and work surface. It uses an AC servo motor and driver through a synchronous toothed belt to drive two pairs of high-precision, gap-free precision screws to move the middle beam up and down. It has the characteristics of reasonable structure, high rigidity, smooth loading, and good stability.The replacement of auxiliary tools can complete wheel buckles, steel pipe fasteners, bowl buckles, and plate buckle scaffolding at the same time., safety net, safety belt, safety ropeVarious mechanical property tests.

This testing machine meets the following standards:

1. "Steel Pipe Scaffolding Fasteners" GB15831-2006;

2. "Bow-button Steel Pipe Scaffolding" GB24911-2010

3. "Wheel-type steel pipe scaffolding fasteners" DB44/T1168-2013

4. "Socket-type disc buckle steel pipe support components" JG/T503-2016

5."Determination of physical and mechanical properties of ropes" GB/T8834-2006

6.《Safetybring》GB6095-2009

7. "Safety Net" GB5725-2009

1.Bowl buckletest

It can complete the crossbar welding joint welding strength test, crossbar joint strength test, lower bowl buckle welding strength test, upper bowl buckle strength test, adjustable bearing compression test,

2.Scaffolding fastenerstest

It can complete the anti-slip test of right-angle (rotating) fasteners, the anti-destruction test of right-angled (rotating) fasteners, the tensile test of butt fasteners, the torsional stiffness test, and the base compression test.

Three.Disk test

It can complete bending and shearing on both sides of the buckle connection plate, bending resistance of the buckle connection plate, shear resistance on one side of the buckle connection plate, and shear resistance of the inner ring weld of the connection plate.

Four.Wheel buckle test

It can complete the wheel buckle disc vertical pole welding strength test, the plug crossbar welding test, and the adjustable bearing compressive strength test.

5.safety net test

It can complete eye-opening buckle test, T-shaped tear test, breaking strength and breaking elongation, seam tensile test, and tether breaking strength test.

Six, safety belt test

Static load test of safety belt main belt and safety rope

seven, safety rope test

Safety rope static load test

Main technical indicators:

1. Maximum test force: 200kN

2. Test force measurement range: 1%--100%

3. Test force indication accuracy: better than ±1% of the indication value

4. Test force resolution: 1/300000 (no binning in the whole process)

5. Crossbeam displacement measurement accuracy: resolution higher than 0.0025mm

6. Deformation measurement accuracy: ±0.5% (in the range of 0.2-10mm)

7. Test speed range: 0.01-500mm/min, stepless speed regulation

8. Speed control accuracy: ±1% (0.01~10mm/min); ±0.5% (10~500mm/min)

9.Constant force, constant deformation, constant displacement control range: 0.2%-100%FS

10.Constant force, constant deformation and constant displacement control accuracy:

When the setting value is less than 10% FS, the setting value is within ±1.0% of the setting value.

When the set value is ≥10%FS, within ±0.1% of the set value

11. Deformation rate control accuracy: within ±2.0% of the set value when the rate is <0.05%FS

When the speed is ≥0.05%FS, it is within ±0.5% of the setting value

12. Test space: A: Tension space: 600mm B: Compression space: 600mm

13. Machine power supply: 220V±10%, 2kW
