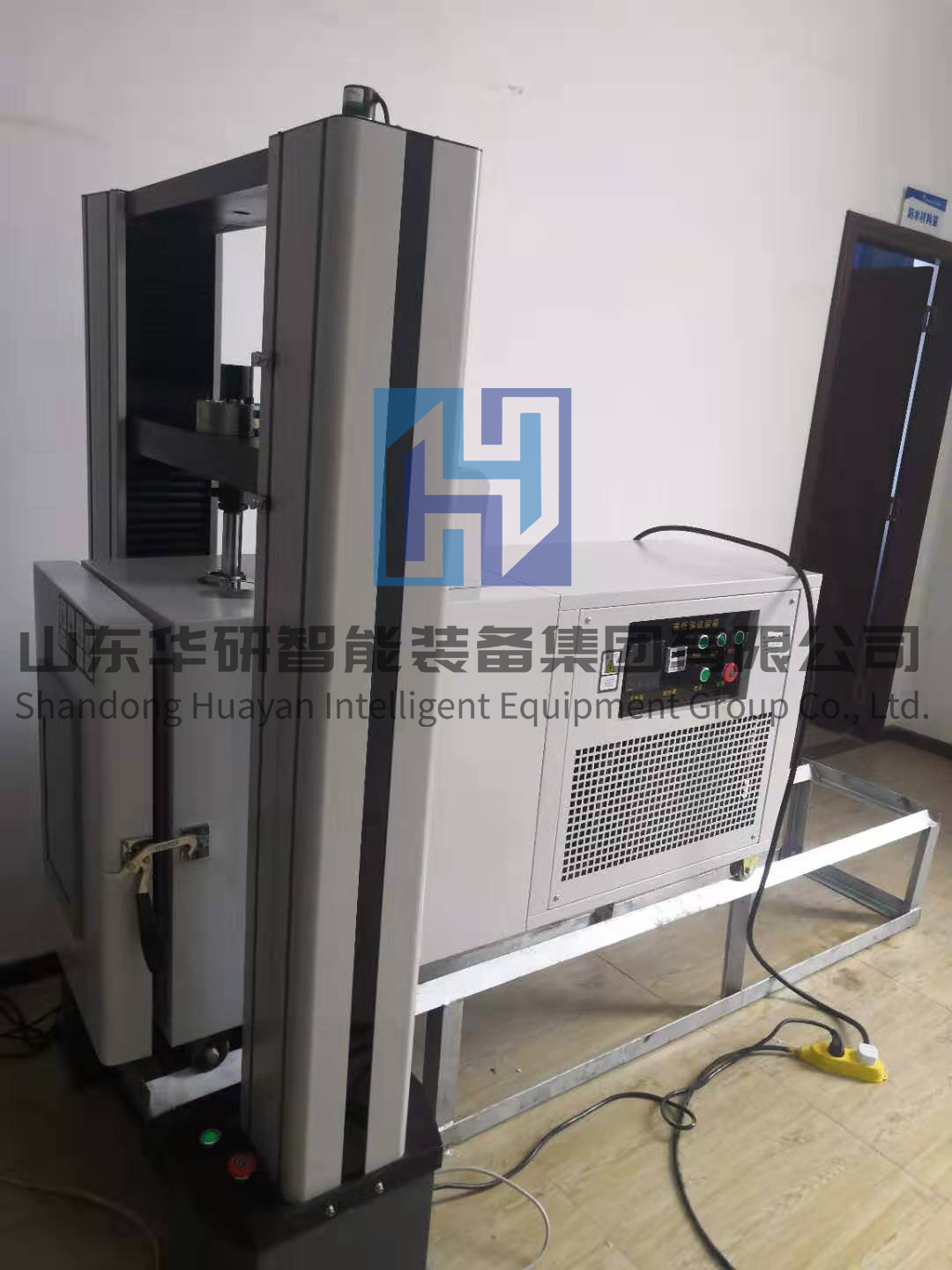

Plastic creep testing machine

It is suitable for creep properties of various plastic standard samples under constant stress under certain temperature and humidity conditions, and testing parameters such as creep modulus and creep ultimate strength of the samples.

1.method standards

1. GB11546.1-2008 "Determination of Creep Properties of Plastics Part 1: Tensile Creep"

2. GB/T 15048-94 "Compression creep test method for rigid foam plastics",

3. GB/T 20672-2006 "Determination of compression creep of rigid foam plastics under specified load and temperature conditions"

4. GB/T 1040.1-2006 "Determination of tensile properties of plastics Part 1";

5. GB/T1041-92 "Plastic Compression Performance Test Method";

6. GB/T9341-00 "Test Method for Plastic Bending Properties";

2.Technical indicators

1 test force

Test force (kN): 5, 10, 20, 50 and other specifications

Effective force measuring range: 0.4%-100%FS(No classification inside or outside)

Resolution: 1/240000

Relative error of indication value: ±0.5%

2 test speed

Speed adjustment range: 0.05~500mm/min (stepless speed regulation)

Speed relative error: ±0.5%

Resolution: 0.001mm

Relative error of indication value: ±0.5%

3Deformation (at normal temperature)

Gauge length: 50mm (or according to user needs)

Output (applicable) range: 0-5mm (or according to user needs)

Effective measurement range: 0.4%～100%FS

Resolution: 0.008mm

Relative error of indication value: ±0.5%

Three.Host and accessories (choose one)
