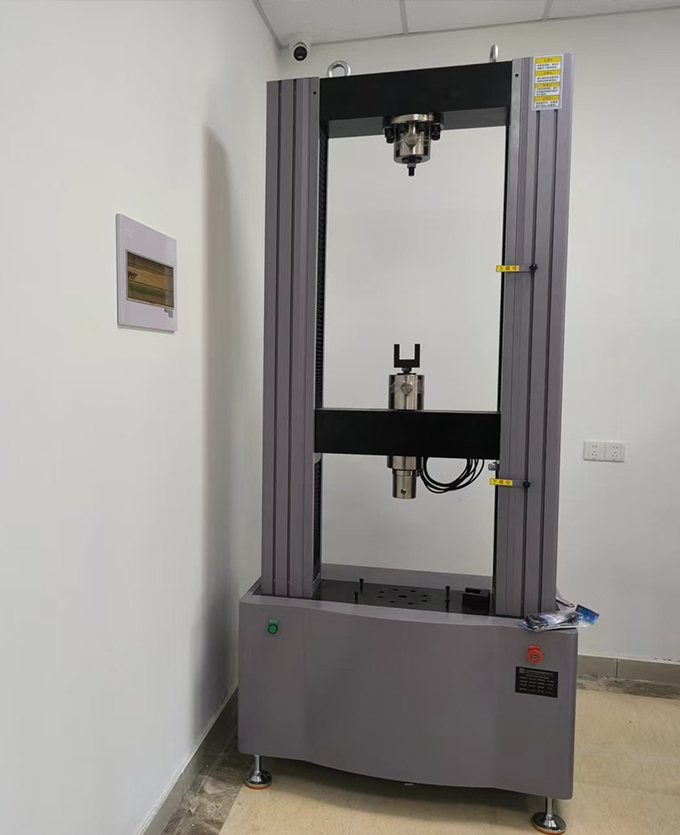

Geosynthetics comprehensive mechanical testing machine

Geosynthetics were once known as "geotextile" and "geomembrane".With the needs of engineering, new varieties of this type of materials are constantly emerging, such as geogrids, geonets and geomold bags, geonet pads, geostrips, composite geomembranes, bentonite waterproof blankets, composite drainage nets, etc.This comprehensive mechanical testing machine for geosynthetic materials can simultaneously complete the mechanical property testing of various geosynthetic materials, such as geogrid tensile test, limit separation, solder joint separation, solder joint peeling force test, geotextile bursting/puncture, wide strip tensile test, T-shaped tear test, etc., one machine is multi-purpose, convenient and fast.

Comprehensive testing machine for geotechnical materials based on standards:

JTG E50-2006 "Experimental Procedures for Geosynthetic Materials in Highway Engineering"
GB/T 15788-2005 "Geotextiles and related products - Wide strip tensile test method"
GB/T 16989-1997 "Geotextile Joints/Seams Wide Strip Tensile Test Method"
GB/T 14800-1993 "Test method for bursting strength of geotextiles" (equivalent to ASTM D 3787)
GB/T 13763-1992 "Test method for tearing strength of geotextiles by trapezoidal method"
GB/T 1040-1992 "Test methods for tensile properties of plastics"
ASTM D4595-1986 "Geotextile and related products wide strip tensile test method"
BS 6906.1-1987 "Geotextile and related products - Wide strip tensile test method"
GB/T 17640-1998 "Geosynthetics - Filament woven geotextiles"

Main technical parameters:

1. Testing power

Test force (kN): 10, you can choose 20kN, 30kN, 50kN

Testing machine measurement accuracy: Level 1 (standard version)/Level 0.5 (professional version)

Effective force measurement range: 2%-100%FS/ (Level 0.5 accuracy is 0.4%-100%)

Resolution: 1/300000

Relative error of indication value: ±1%/(Level 0.5 accuracy is ±0.5%)

2. Test speed

Speed adjustment range: 0.001~500mm/min (stepless speed regulation)

Accuracy: better than ±1% of indication

3. Displacement (moving beam)

Measuring range: 0～999mm

Resolution: 0.001mm

Measurement accuracy: better than ±1% of the indicated value

4. Deformation

Effective measurement range: 2%～100%FS

Resolution: 0.01mm

Relative error of indication value: ±1%

5. Test space

Effective stretching space: 700mm

Effective compression space: 700mm

Effective test width: 400mm

6. Working environment

Room temperature 10～35℃

Humidity 20%～80%
