Equipment overview:
This machine is used to test the degree of damage caused by free fall impact after packaging of various products. It can test the rhombus, corners and surfaces of packaging containers, and evaluate the impact strength of electronic components when they are dropped during transportation. It is mainly used to assess the ability of product packages to withstand drops during transportation and loading and unloading, thereby improving and perfecting packaging design.
Main functions:
The drop height can be freely controlled. If it is set to 500mm, it will automatically stop at 500mm. The drop range can be set arbitrarily from 300 to 1500mm.
Application industries:
It is an ideal testing and research equipment suitable for various factories and enterprises, technical supervision departments, commodity inspection agencies, scientific research institutes, universities and other departments.

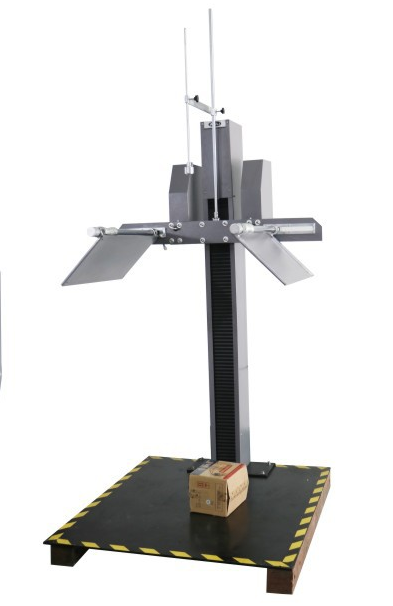

Packaging drop test machine (bi-wing type)
Technical parameters:
Drop height | 300-1500MM (double wings) |
Maximum weight of test piece | 60Kg |
Maximum size of test piece | 800*800*1000mm |
Impact panel size | 1400*1200*20MM |
Motor power | 1.85kW |
Test bench dimensions | 1400-1200-2200mm |
Drop error | ±5mm |
Drop plane error | <1° |
height display | Using high-precision encoder sensing |
power supply | 380V, 1.5KW |
