Concrete drainage pipe external pressure testing machine

1. Overview:

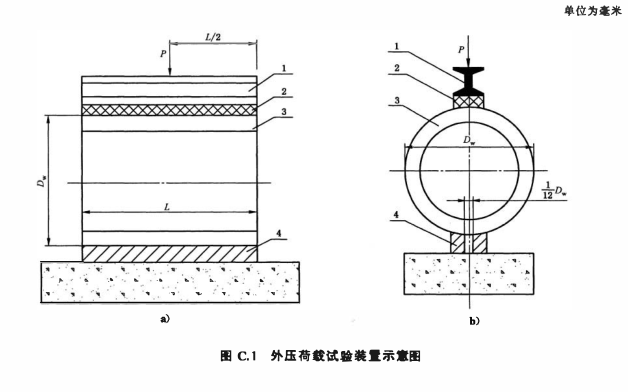

The concrete and reinforced concrete drainage pipe testing device is developed in accordance with the national standards "Concrete and Reinforced Concrete Drainage Pipes" (GB/T 11836-2009) and "Concrete and Reinforced Concrete Drainage Pipes Test Methods" (GB/T 16752-2010). It adopts a three-point compression mode and is mainly suitable for external pressure testing of concrete and reinforced concrete drainage pipes.

2. Main features

1. The cross beam is lifted and lowered by an electric screw, which is convenient for testing drainage pipes of different diameters (300-3000mm).

2. The machine base adopts a special structure and is flush with the ground, which facilitates the insertion of various mouth-shaped drainage pipes.

3. The loading adopts microcomputer-controlled hydraulic loading, which saves time and effort, makes the loading stable, and the test space can be reset quickly.

4. The loading speed is constant, and the whole process is automatically controlled by a microcomputer, meeting the loading speed and pressure holding control time requirements at each level stipulated in the national standard, and the load control level can be specified by customer programming.

5. The strokes of the beam and piston are equipped with limit protection to ensure the safety of the test process.

6. The software is equipped with an automatic force value clearing system, which eliminates factors such as manual clearing errors.

7. Double system control, namely manual control system and computer automatic control system.Easy to replace.

8. The test speed, pressure holding point, and pressure holding time can all be written during programming, and the operation is fully automatically controlled by a microcomputer.

3. Main technical parameters:

1. Maximum pressure: 600KN (1000kN can also be customized)

2. Clear distance between columns: 2300mm

3. Test space: 4000×2300mm

4. Cross beam adjustment method: electric screw (electric control button, free adjustment)

5. Cross beam adjustment range: 300mm～4000mm

6. Cross beam moving speed: 100mm/min

7. Force value accuracy: Level 1 (better than ±1% of the indicated value)

8. Piston stroke: 350mm

9. Upper support beam: 2000mm

10. Hardwood support length: 1000+1000= 2000mm

11. Hardwood support spacing: adjustable (turntable type, easy to adjust)

12. Hardwood support rounded corners: fully responsive to national standards

13. Loading method: electro-hydraulic.

14. Load control method: fully automatic computer control system.

15. Whole machine weight: 5000Kg

16. Overall dimensions: 5000x4000x3000mm

17. Features: Automatic identification and recording of crack loads and automatic recording of failure loads; automatic calculation of the percentage that reaches the national standard and the issuance of a data report.

18. Safety protection: It has overload protection function, that is, automatic unloading when the force value exceeds 3% of the full range.

19. Configuration: Lenovo brand computer, LCD monitor, HP color printer.

20. Installation instructions: Due to the large size of the equipment, the foundation needs to be prepared on-site in advance, and the installation and painting must be done on-site (requires user installation and hoisting).
