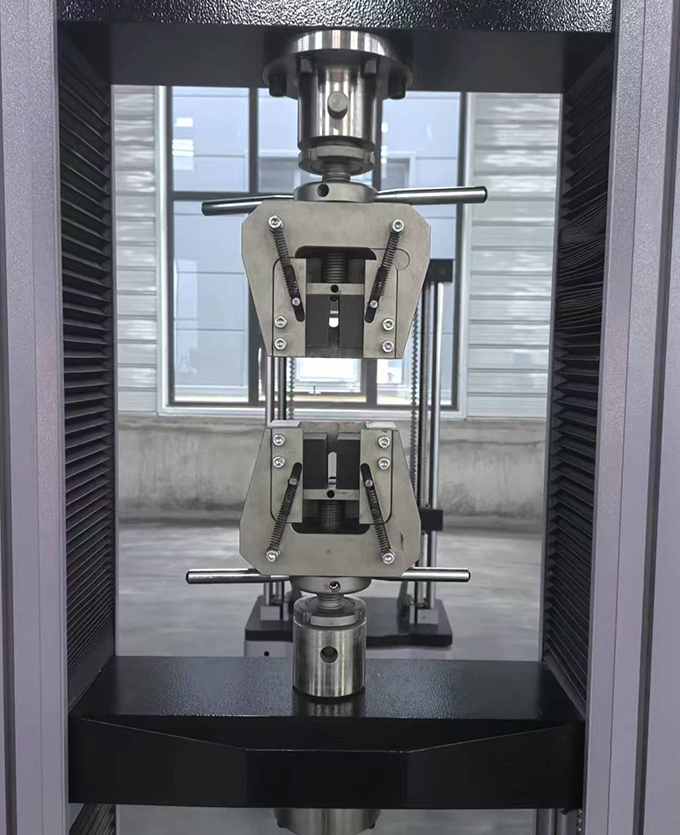

Home page >> Product display >> Special testing machine >> Steel wire rope core conveyor belt bonding strength testing machine
This machine uses the pullout fatigue test method to measure the dynamic bonding strength index between the steel wire rope and rubber in the steel wire rope core conveyor belt.
Through motor transmission, the lower clamp of the bonding strength testing machine is raised or lowered, and a periodic pulling load is applied to the steel wire rope in the sample to measure the dynamic bonding strength when a certain number of load cycles is reached or the bonding is damaged.It can also perform pull-out tests after completing the cyclic test cycle specified in the standard.The design of this machine complies with the test use requirements of GB21352-2008 Appendix A and MT668-2008 Appendix B standards.
Sensing method | Tension sensor |
Capacity | 50KN |
Number of workpieces | Single station |
Force resolution | 0.3‰f·S |
cycle period | 5-10 seconds |
Cycle period setting | 1-10000 times (can be set) |
language | Chinese |
Transmission mode | Motor drive |
power supply | AC 220V±10% 3-phase five-wire system 50Hz±1% |
Maximum power consumption | 4.6KW |
Minimum/maximum load implementation | 3.6%-36% calculation value of static bonding strength of steel wire rope |
Overall machine weight | 300kg |
Host size (mm) | 815*360*1650mm |
Test specifications | ST630---ST7500 |
