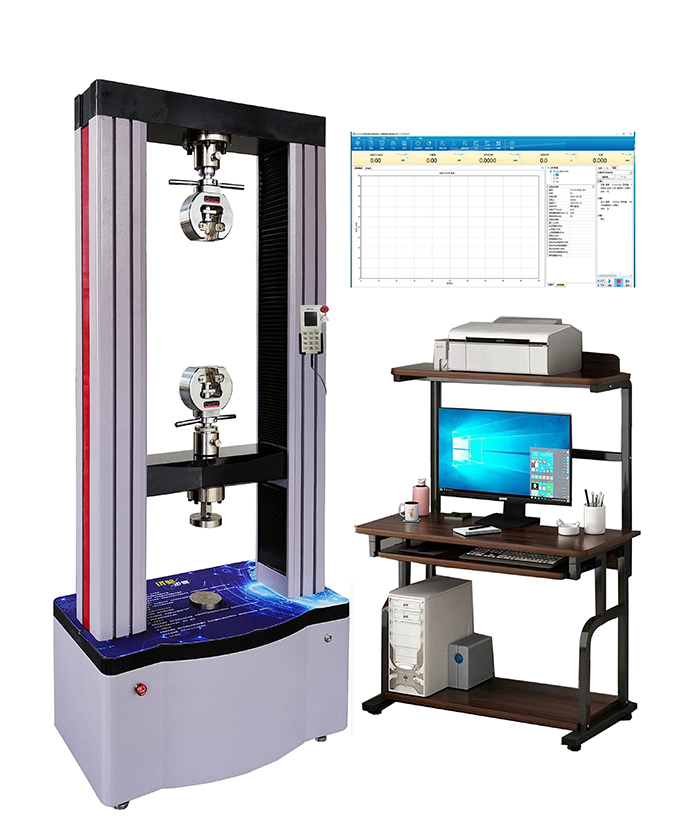

Special testing machine for dryer coated cloth

Microcomputer controlled hair dryer coating clothThe testing machine is our company’s standardGB/T20105,MT/T164, equipment designed, developed and produced according to HG/T2580 and other standards specifically for testing the breaking strength and tearing force of dryer coated cloth, seam overlap strength and bonding strength.It can also be used to test mechanical properties such as tension, compression, bending, shearing, peeling, and tearing of various metals, non-metals, and composite materials.The system adopts microcomputer closed-loop control, has a wide and accurate loading speed and force measurement range, and has high accuracy and sensitivity for the measurement and control of load and displacement.

Equipment parameters:

1. Test force: 50kN (5T);

2. Test force binning: stepless speed regulation

3. Test range: 1%-100%FS

4. Test force accuracy; ±1%

5. Displacement resolution: 0.1mm

6. Displacement speed control range: 0.1mm/min～500mm/min

7. Displacement speed control accuracy: ±1%

8. Testing machine level: 0.5

9. Deformation indication error: ≤±(50+0.15L)

10. Test space: Test space width 400mm (can be customized according to requirements)

The effective stretching distance of the test is 600mm (can be customized according to requirements)

11. Appearance: should comply with the requirements of GB/T2611

12. Complete set: meets standard requirements

13. Protection functions: overload protection, limit protection, electronic control system overcurrent, overvoltage, overheating and overtemperature protection.

14. Machine net weight: about 400Kg

15. Testing machine size: about 760*420*1850 mm

16. Power supply: 220V, 50Hz
