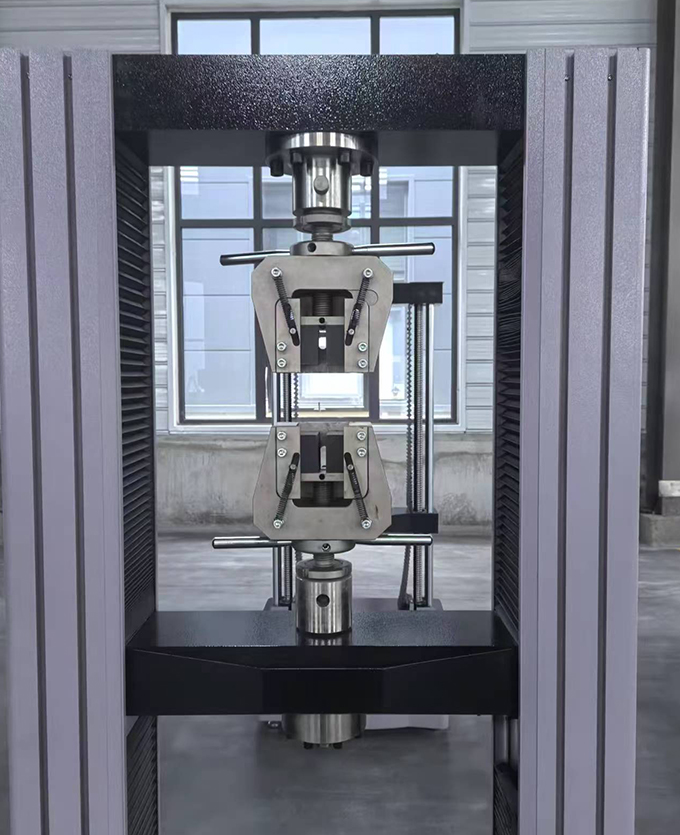

This 30-ton microcomputer-controlled vertical conveyor belt longitudinal tensile testing machine is designed by our company based on the longitudinal tensile strength of the standard MT/T668-2008 Steel Wire Cord Flame-Retardant Conveyor Belt for Coal Mines and MT/T318.1-1997 Technical Conditions for Mechanical Joints of Conveyor Belts for Coal Mines.It can also be used to test mechanical properties such as tension, compression, bending, shearing, peeling, and tearing of various metals, non-metals, and composite materials.The system adopts microcomputer closed-loop control, has a wide and accurate loading speed and force measurement range, and has high accuracy and sensitivity for the measurement and control of load and displacement.
The testing machine adopts a digital AC servo speed regulating system and a motor with high speed regulation accuracy and stable performance as the driving system; a specially designed synchronous toothed belt deceleration system and a ball screw pair drive the moving beam of the testing machine; the control and data processing software based on database technology using Windows as the operating platform adopts virtual instrument technology to realize test force, test force peak value, beam displacement, sampleThe screen display of deformation and test curves, all test operations can be completed by mouse input on the computer screen, with a good human-machine interface and easy operation; the comprehensive application of the above-mentioned technologies ensures that the machine can achieve closed-loop control of parameters such as test force, specimen deformation and beam displacement, and can realize tests such as constant force, constant displacement, constant strain, constant speed load cycle, constant speed deformation cycle, etc.
Applicable standards:
1. GB/T 2611-2007 "General Technical Requirements for Testing Machines"
2. JB/T 7406.1-1994 "Testing Machine Terminology Material Testing Machine"
3. GB/T 16491-2008 "Electronic Universal Testing Machine"
4. GB/T 16825.1-2008 "Inspection of Static Uniaxial Testing Machines Part 1: Inspection and Calibration of Force Measuring Systems of Tensile and/or Compression Testing Machines"
5. GB/T 22066-2008 "Evaluation of computer data acquisition systems for static uniaxial testing machines"
6. JJG 139-1999 "Tensile, Compression and Universal Materials Testing Machine"
7. JB/T 6146-2007 "Technical Conditions for Extensometers"
8. JB/T 6147-2007 "Technical Requirements for Testing Machine Packaging, Packaging Marking, Storage and Transportation"
9. GB/T 228.1-2010 "Metallic Materials Tensile Testing Part 1: Room Temperature Test Method"
10. GB/T 7314-2005 "Metallic Materials - Room Temperature Compression Test Method"
11. GB/T 232-2010 "Metallic Materials - Bending Test Methods" and other non-metal testing standards
12. MT/T668-2008 Steel wire core flame retardant conveyor belt for coal mines
13. MT/T318.1-1997 Technical conditions for mechanical joints of conveyor belts in coal mines
14. MT/T914-2008 Fabric integral conveyor belt for coal mines
Main parameters of equipment:
Name | Conveyor belt longitudinal tensile testing machine |
Maximum test force | 300 |
accuracy level | Level 1/Level 0.5 |
Allowable error limit of test force indication | Within ±1% of the indication value |
Load measuring range | 0.4%～100%FS of full scale |
Test force indication resolution | 1/500000 of the maximum test force |
Deformation measurement range | 1-100%FS |
Deformation indication error limit | Within ±1% of the indication value |
Deformation resolution | 1/500000 of the maximum deformation |
Displacement indication limit error | Within ±1% of the indication value |
Displacement resolution | 0.001mm |
Constant displacement control adjustment accuracy | When the speed is <0.1%FS, it is within ±1% of the set value; When the speed is >0.1%FS, it is within the ±0.2%/±0.5% setting value. |
Displacement speed adjustment range | 0.01-300mm/min |
Displacement rate control accuracy | When the speed is <1mm/min, within ±0.5% of the set value, When the speed is ≥1mm/min, within ±0.2% of the set value |
Effective test width | 600mm |
Effectively stretch and compress space distance | 1500mm (can be specially customized according to user needs) |
Software and user interface | Human-machine dialogue, fully automatic control |
Power supply | Three-phase 220V; 50Hz, 1.5kW |
Host dimensions | About 1050*800*3100mm |
Machine weight | About 2000kg |
