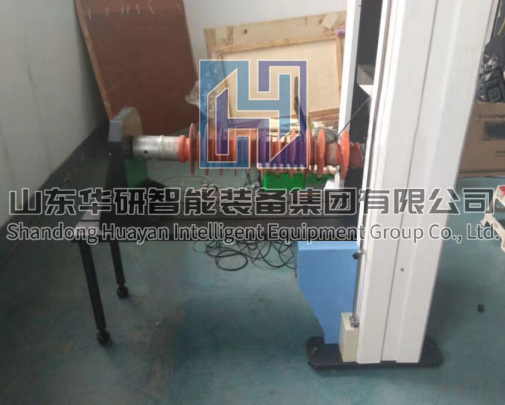

Insulator mechanical load testing machine

Shandong Huayan insulator mechanical load testing machine is mainly suitable for tensile and compression tests of pillar insulators.By adding other auxiliary tools, it can test the mechanical properties such as tension, compression, bending, shearing, tearing, peeling, compression resistance, and flexural resistance of metal, non-metal and composite materials.

1. According to standards:
1. This testing machine is suitable for the GB/T 8287.1-2008 "Indoor and outdoor pillar insulators for systems with nominal voltage higher than 1000V Part 1: Testing of porcelain or glass insulators" standard.
2. This testing machine is suitable for the GB/T 8287.2-2008 "Indoor and outdoor pillar insulators for systems with nominal voltage higher than 1000V Part 2: Dimensions and Characteristics" standard.
3. This testing machine is manufactured according to GB/T 16491-2008 "Electronic Testing Machine" standard.
4. This testing machine is calibrated and accepted in accordance with GB/T12160-2002 "Regulations on Extensometers for Uniaxial Testing" and GB/T16825-1997 "Inspection of Tensile Testing Machines".

2. Test method:
1. Tensile test: Tensile test means that the insulator is subjected to a tensile load along its axis.The tensile load of a pillar insulator can be tested with a single pillar insulator. If the pillar insulator is composed of multiple components, select a component with lower strength for testing.(Requirements of 5.2.6 in GB/T 8287.1-2008 standard)
2. Compression test: The compression test means that the insulator is subjected to compressive pressure load along its axis.The compressive strength of the two-dimensional pillar insulator can be tested with a single pillar insulator. If the pillar insulator is composed of multiple components, select a component with lower strength for testing.Longer pillar insulators may become unstable during compression tests, so the entire pillar insulator should be used for testing.(Requirements of 5.2.7 in GB/T 8287.1-2008 standard)
Ceramic insulator bending testing machine technical parameters:
3. Technical parameters
Test force: 100kN (adjustable);
Test force binning: stepless speed regulation
Test range: 1%-100%FS
Test force accuracy; ±1%
Displacement resolution: 0.1mm
Displacement speed control range: 0.1mm/min～500mm/min
Displacement speed control accuracy: ±1%
Testing machine level: Level 1
Deformation indication error: ≤±(50+0.15L)
Test space: Test space width ≥ 380mm (can be customized according to requirements)
The distance between the beam and the workbench is ≥600mm (can be customized according to requirements)
Appearance: should comply with the requirements of GB/T2611
Complete set: meets standard requirements
Protection functions: overload protection, limit protection, electronic control system overcurrent, overvoltage, overheating and overtemperature protection.
Machine net weight: about 400Kg
Testing machine size: about 900*480*1950mm
Power supply: 220V, 50Hz
