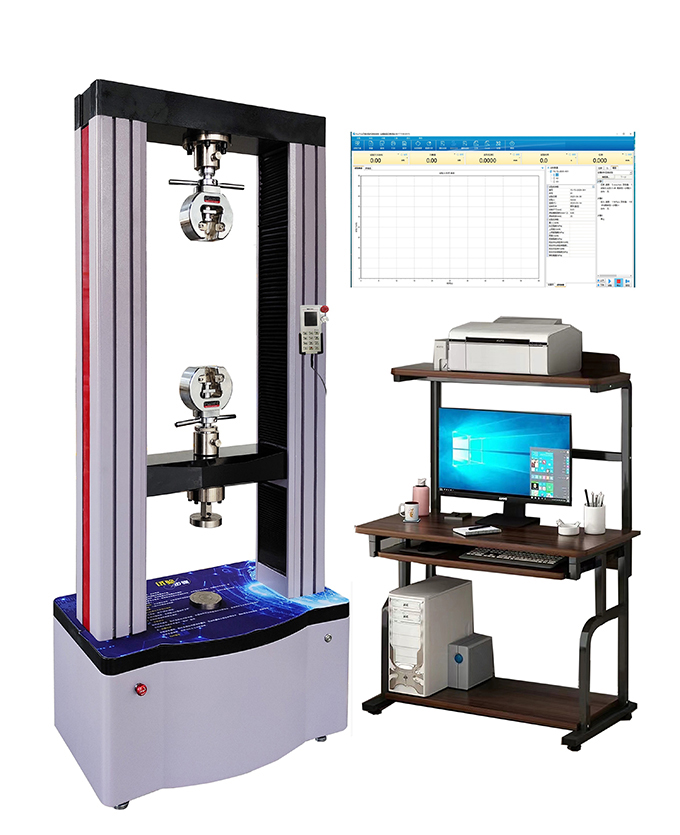

Safety rope breaking strength testing machine

The safety rope tension testing machine mainly detects the static load test of safety belts and safety ropes. In addition, it is equipped with some fixtures and is also suitable for testing the tensile, compression, bending, shearing, tearing, peeling, compression resistance, bending resistance and other mechanical properties of metals, non-metals, building materials and insulation materials.

Technical parameters:

1. Maximum test force: 50KN

2. Accuracy level: 0.5 level

3. Structural form: portal frame structure, fully sprayed

4. Allowable error limit of test force indication: within ±1% of the indication value

5. Load measurement range: 2% ~ 100% FS of full scale

6. Force resolution: 1/300000 of the maximum test force

7. Limit error of displacement indication: within ±1% of indication

8. Minimum resolution of displacement: 0.01mm

9. Cross beam speed adjustment range: 0.05~500mm/min

10. Relative error of beam speed: within ±1% of the set value

11. Effective test width: 400mm

12. Effective stretching space distance: 650mm

13. Host dimensions: 815*360*1650

14. Host weight: 250kg

15. Power supply: 220V, 50Hz, 0.75KW

16. After the sample is damaged, the moving beam automatically stops moving (or automatically returns to the initial position)

17. With program-controlled and mechanical two-level limit protection
