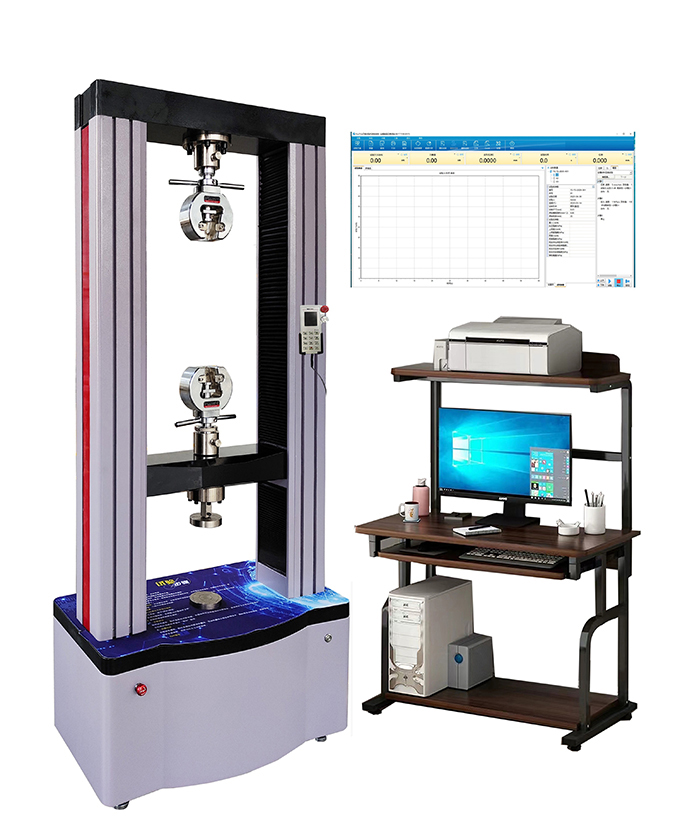

Construction adhesive testing equipment

Shandong Huayan construction adhesive testing equipment is a testing equipment specially developed and produced for construction adhesives, which meets JC/T 989-2016, JC/T 438-2006, JC887-2001, GB/T 2567-2008, GB/T7124-2008 and other test standards. By replacing different fixtures, the flexural elastic modulus, viscous bending strength, compression shear bonding strength, tensile shear, bonding strength and other tests can be completed. The fixtures are easy to replace, and the machine is multi-purpose. It is an ideal testing equipment for the construction industry, testing units, and adhesive manufacturers.

Technical parameters:

1. Style: Double pillar door type
2. Test force: 10KN (10000N)
3. Measuring range: 2%-100%;
4. Test force accuracy; better than ±1% of the indicated value
5. Accurate value of test force; 1N
6. Testing machine level: Level 1
7. Displacement resolution: 0.01mm;
8. Displacement measurement accuracy: ±0.5%;
9. Test space: 600mm (can be customized according to customer needs)
10. Horizontal experimental space: 400 (can be customized according to customer needs)
11. Displacement speed control range: 0.1mm/min～500mm/min
12. Displacement speed control accuracy: ±0.5%;
13. Testing machine size: about 815*360*1650
14. Testing machine weight: about 250
15. Appearance: Should comply with the requirements of GB/T2611
16. Complete set: meets standard requirements
17. Protection function: The testing machine has overload protection function
18. Power supply: 220V, 50Hz
