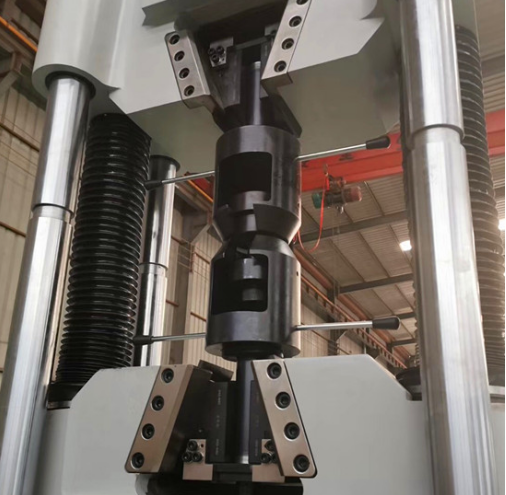

Bolt Tensile/Wedge Load Nut Guaranteed Load Testing Machine

Fastener mechanical tests are usually bolt and nut tests.The bolt test includes the bolt tensile fracture (or load holding) test and the wedge load test; the nut is usually the nut load holding test (tension or compression load holding).The bolt/nut tensile testing machine is mainly suitable for testing the mechanical properties of bolts, nuts, standard parts, and fasteners. It can accurately detect the tensile strength and yield strength of bolts, standard parts, and fasteners; the maximum load-bearing capacity value of screw threads, nuts, and screws, and the maximum deformation of the screw when damaged. The test meets the GB/T228-2021 test methods and standards.It is suitable for testing the mechanical properties of bolts, nuts, standard parts and fasteners. It can accurately detect the tensile strength and yield strength of bolts, standard parts and fasteners, the tensile strength of bolts, wedge load and the guarantee load test of nuts.

GB/T 3098.1-2010 "Mechanical Properties of Fasteners Bolts, Screws and Studs"
GB/T2611-2007 "General technical requirements for testing machines"
GB/T16491-2008 "Electronic Universal Testing Machine"
GB/T 13634-2008 "Calibration of standard force measuring instruments for inspection of uniaxial testing machines"
JB/6146-2007 "Extensometer Technical Conditions"
GB/T228.1-2021 "Metallic Materials - Room Temperature Tensile Test Method"
GB/T7314-2005 "Metal Compression Test Method"
GB/T8653-2007 "Metal Young's modulus, black line modulus, tangent modulus and Poisson's ratio test method (static method)"
GB/T 16825.1-2008 "Inspection of Static Uniaxial Testing Machines Part 1: Inspection and Calibration of Force Measuring Systems of Tensile and/or Compression Testing Machines"

Maximum test force (KN): 1000

Relative error of test force indication: ≤±1% of indication

Test force resolution (KN): 0.01

Maximum tensile test space (mm): 650

Maximum compression test space (mm): 550

Piston stroke (mm): 200

Circular specimen jaw clamping diameter (mm): Φ13-Φ40

Flat specimen clamping jaw thickness (mm): 0-30

Maximum clamping width of flat specimen (mm): 70

Pressure plate size (mm): φ160

Maximum distance between two points of bending test (mm): 450

Bending roller width (mm): 120

Bend roller diameter (mm): Φ30

Maximum moving speed of piston (mm/min): 50

Clamping method: hydraulic clamping

Host overall dimensions (mm): 910×830×2300

Weight (KG): 3200
