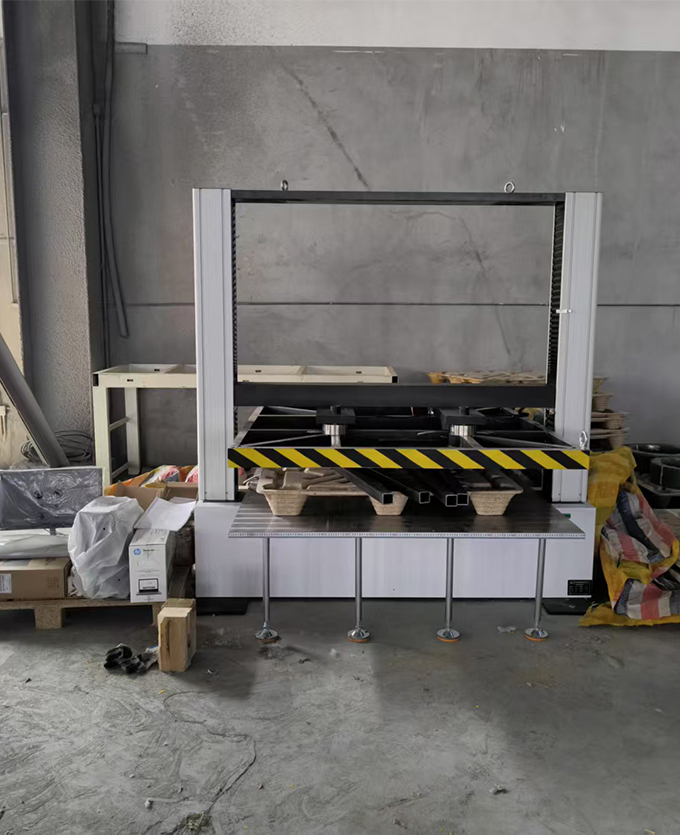

Pallet compression testing machine

Huayan HYW-100TP intelligent pallet pressure testing machine is a classic and practical model developed by our company. It is mainly used for compressive strength testing of various types of pallets.●Plastic pallet testing: stacking test, bending strength test, lower decking strength test, uniform load strength test (air bag required) ●Intermodal general flat pallet testing: stacking test, bending test, wing pallet test, bottom decking test ●ISO8611/GBT4996 pallet for transporting goods: bending test (1a, 1b), fork lift test

Huayan HYW-100TP intelligent pallet pressure testing machine is a classic and practical model developed by our company. It is mainly used for compressive strength testing of various types of pallets.

●Plastic pallet testing:Stacking test, bending strength test, lower decking strength test, load sharing strength test (air bag required)

●Intermodal universal flat pallet test:Stacking test, bending test, wing pallet test, bottom decking test

●ISO8611/GBT4996Pallets for transporting goods:Bending test (1a, 1b), fork lift test (2a, 2b), pad or longitudinal beam compression test (3a, 3b), stacking test (4a, 4b), bottom decking bending test (5a, 5b), wing pallet bending test (6a, 6b), airbag bending test (7a, 7b)/airbag are optional.

This machine can measure 4 displacements at the same time. With 4 external displacement measurement sensors, it can measure the displacement changes of 4 points at the same time.

2.Implementation standards

GB/T4996 "Test Methods for Universal Flat Pallets for Intermodal Transport"

GB/T 4995 "Performance Requirements for Universal Flat Pallets for Intermodal Transport"

GB/T15234 "Plastic Flat Pallets"

ISO 8611-1.2 "Pallets for transporting goods, flat pallets - Part 1: Test methods"

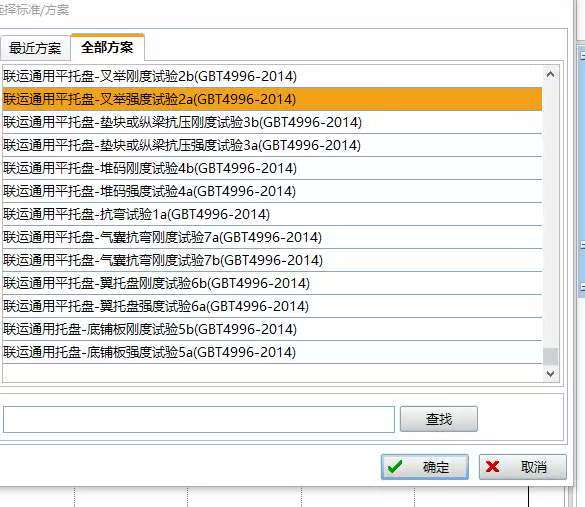

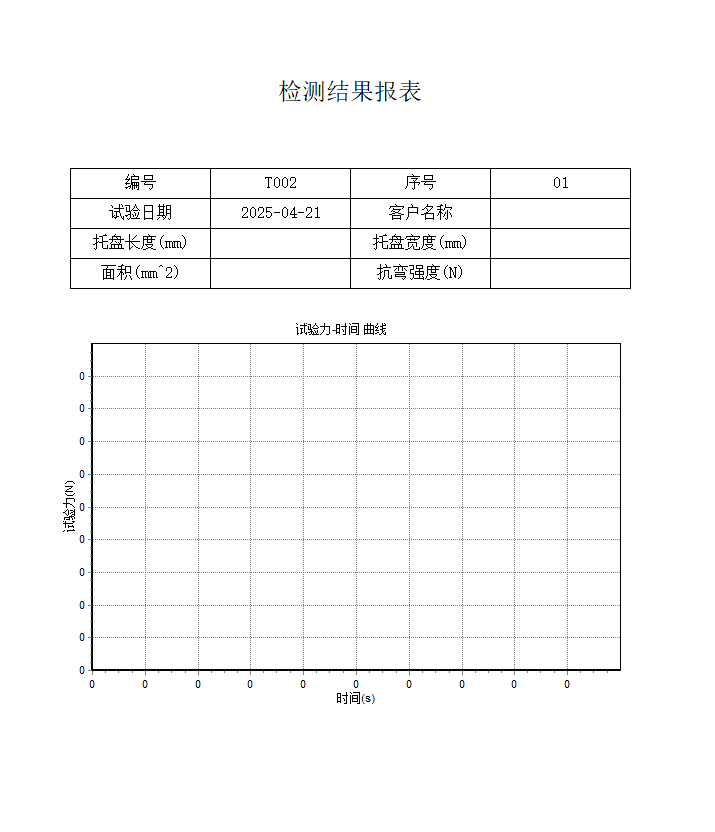

This machine is equipped with data processing and measurement and control software using Windows as the operating platform, which realizes screen display of test force, test force peak value, beam displacement, sample deformation and test curve. All test operations can be completed on the computer screen by mouse input. It has a good human-machine interface and is easy to operate.

three,Mechanical structure

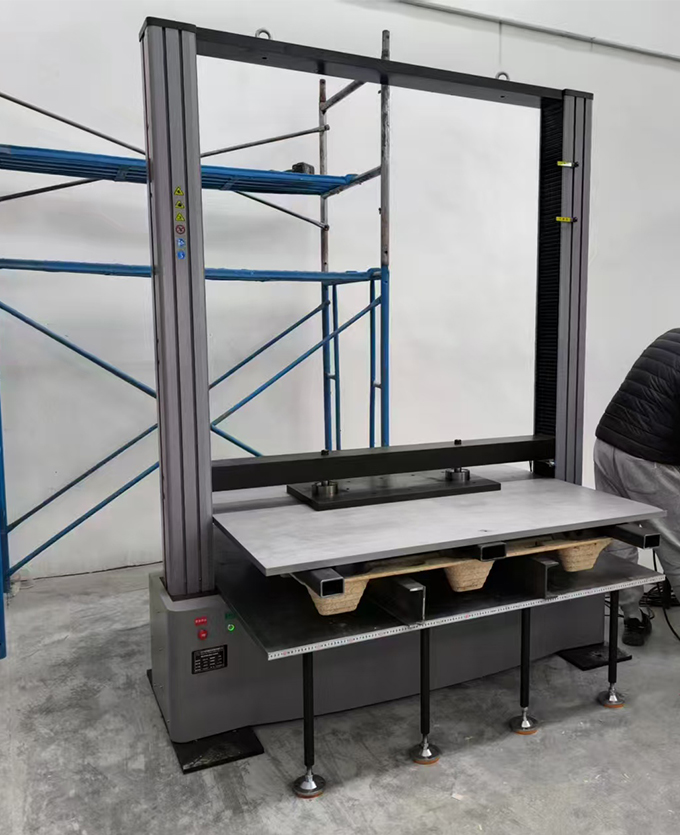

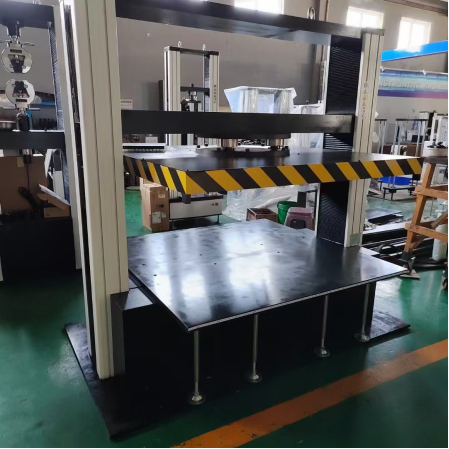

This machine has a gantry structure, and the entire driving part is located at the bottom of the equipment. The entire chassis is welded with section steel and steel plates. The pressure plates are made of carbon steel plates with strong pressure bearing and high rigidity and are precision processed. Multiple high-precision pressure sensors are evenly distributed on the plane of the pressure plate to ensure the accuracy and balance of the test results.

4. Technical parameters
