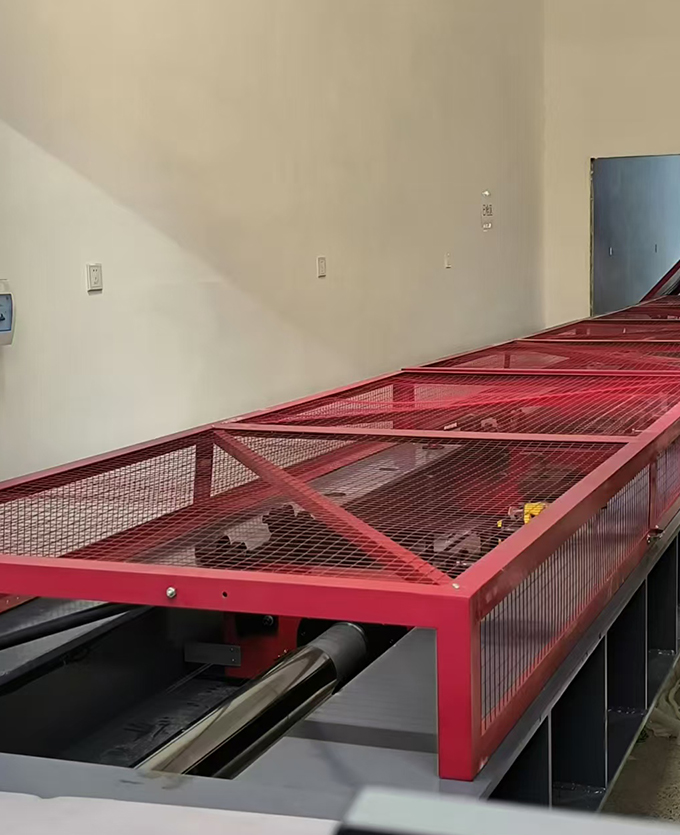

Hand chain hoist/cable tensioner/bottle rack horizontal tensioning machine

Shandong Huayan special testing machine for power tools meets the requirements of DL/T1741-2017 and other standardsStatic load test for hand chain hoists, hand chain, poles, hooks (rings), shackles, pulleys, wire ropes (sets), fiber ropes, slings, wire tighteners, connectors, wire clamps, insulator clamps, wire lifting tools, bottle racks, etc..It adopts the overall steel plate welded frame structure of the frame, a single-rod double-acting piston cylinder applies test force, a cylindrical pin is inserted into the sample, and a load sensor measures the force. The stretching space can be adjusted step by step according to the length of the sample specification. The computer screen controls and displays the test force and test curve, and automatically processes test data according to the requirements of the test method. It has a large working space, multi-purpose machine, and is flexible and easy to operate.

Model features:
1. Adopt purely digital phase-locked loop position pulse control mode, with no zero drift or imbalance.
2. High-precision ball screw pair transmission has stable loading, long service life, good stability and energy saving.
3. Software overload protection, over-displacement protection, mechanical mandatory safety limit protection and other measures.
4. The test software user interface is simple and reliable, and the human-computer dialogue function is powerful
5. The open data structure allows users to randomly call both result parameters and process data, which is very beneficial to scientific research and teaching.
6. User-edited report function, data can be easily imported into Excel and WORD tables to facilitate user post-processing.

7. Equipment features: low noise, no oil pollution, flexible, convenient and reliable to use.

Equipment parameters:

Test force 600KN (can be customized as required)
Test force measurement range 60-600kN
Relative error of test force indication ±1%
Test space 3100mm*600mm (can be customized)
Displacement measurement range 0-1000mm

Host size (length*width*height) 5800mm*1050mm*800mm
