Special testing machine
Home page >> Product display >> Special testing machine >> Tear strength testing machine

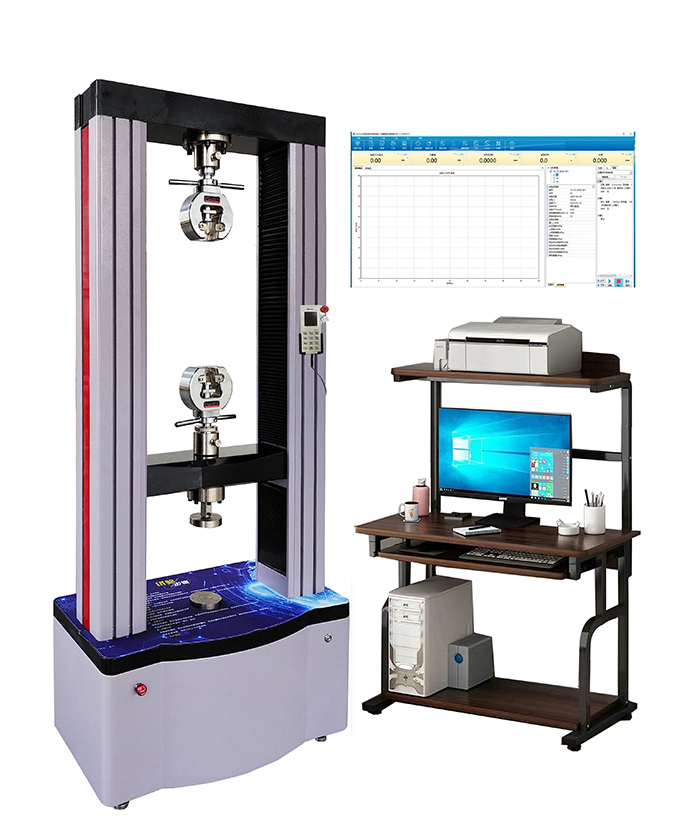

Rubber tear strength testing machine implementation standards: GB/T16491-1996 "Electronic Testing Machine", GB/T528 "Determination of Tensile Stress Strain Properties of Vulcanized Rubber or Thermoplastic Rubber", GB/T529 "Determination of Tear Strength of Vulcanized Rubber or Thermoplastic Rubber (Trousers-shaped, Right-Angle and Crescent-shaped Samples)", etc.;
Equipped with corresponding fixtures, it can complete mechanical property tests such as longitudinal and transverse stretching, stretching, and tearing properties of various papers, film rubber, plastics, textiles, waterproof materials, non-woven fabrics, metal wires, metal foils, and metal sheets, peeling, splitting, and shearing strength tests of adhesive materials such as composite films and self-adhesive materials, elongation at break tests, and heat sealing stretching, tearing, and strength tests.
Testing power | 10KN |
Measuring range | 2% of test force |
Testing machine accuracy level | Level 1 |
Test force accuracy | Better than ±1% of the indication value |
Crossbeam displacement measurement | Resolution is 0.01mm |
Deformation accuracy | Better than ±1% |
Speed range | 0.01-500mm/min |
Experimental space | 600mm |
Host mode | Portal frame structure |
Host size | 815*360*1650 |
weight | About 250Kg |
working environment | Room temperature ~ 45℃, humidity 20% ~ 80% |
