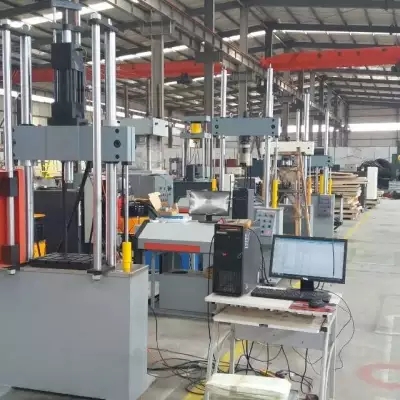

Structural part fatigue testing machine

It is mainly used for tensile, compression, fatigue, low-cycle fatigue, crack propagation, fracture mechanics, physical testing and simulation testing of metallic materials and non-metallic materials, components, structural parts, standard parts, especially new materials such as super-strength steel, titanium alloys and reinforced synthetic fibers, etc. to determine their fatigue performance parameters, fatigue life, cyclic elastic modulus, and fatigue crack growth rate.

1. Equipment design and manufacturing execution standards
JB/T9397 "Technical Conditions for Tension and Compression Fatigue Testing Machine"
JB/T8286 "Dynamic Force Calibration of Axial Loading Fatigue Testing Machine"
GB/T3075 Axial force control method for material fatigue testing
GB/T 16779 Test method for fatigue performance of fiber reinforced plastic laminates
GB/T50081 Test method for fatigue crack growth rate of materials
GBT228[1].1-2010 Metallic Materials Tensile Test: Room Temperature Test Method
GBT 10623-2008 Metallic Materials Mechanical Property Test Terminology
GB/T 2611-2007 General technical requirements for testing machines
GB/T8612-2015 Electro-hydraulic servo universal testing machine;
GB/T228 Room temperature tensile test method for metal materials
GB/T7314 Material room temperature compression test method
JJG 1063-2010 National Measurement Verification Regulations
GB/T 16825-2008 Inspection of static uniaxial testing machines
JJF 1103-2003 Evaluation of computer data acquisition system for universal testing machines
GB/T 22066—2008 Evaluation of computer data acquisition systems for static uniaxial testing machines

2. Main technical parameters of equipment
1. Maximum test force ±2000N
2. Relative error of test force indication value ≤±0.5% of indication value
3. Test force measurement range: 0.5% to 100% of the maximum test force
4. Constant velocity stress control range 2～100 (N/mm2·S-1)
5. Stress rate error ≤±0.5%
6. Constant velocity displacement control range 0.05-550 (mm/min)
7. Relative error of displacement speed ≤±0.5%
8. Fluctuation of dynamic indication of test force: 0.5%FS;
9. Maximum displacement of actuator: 550mm; indication accuracy ±0.5%FS;
10. Main test waveforms: sine wave, square wave, triangle wave, ramp wave, etc.
11. Test frequency: 0.01-5Hz;
12. Maximum test space 700mm
