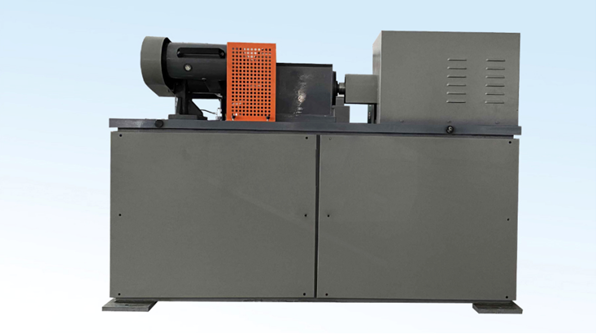

GPM-40 microcomputer controlled rolling contact fatigue test bench

1. Main uses

The GPM-40 microcomputer controlled rolling contact fatigue test bench is used to simulate the failure test of rolling contact parts such as bearings, wheels, rollers, etc., by applying a constant load to the rolling or rolling plus sliding contact specimen, so that the contact surface is subjected to cyclic contact stress.By controlling and changing load, speed, slip rate, time, friction partner material, surface roughness, hardness and other parameters, the test is conducted to evaluate the comprehensive performance of the sample material.Meets the requirements of standard GB10622-89 rolling contact fatigue test method for metal materials.

2. Main technical indicators

1.1 Test force: 1.2～30kN
1.2 Relative error of test force indication: ≤±1%
1.3 Long-term maintenance indication error of test force: ≤±1%F.S
1.4 Maximum test torque: 20Nm
1.5 Relative error of torque indication: ≤±1%
1.6 Test speed: 5～2000r/min steplessly adjustable
1.7 Test time control range: 1s～9999min
1.8 Test rotation display and control range: 999999999
1.9 Test piece size: standard requirements
1.10 Test space: satisfy the clamping of friction pairs
1.11 Servo motor power: 5kW (dual motor control)
1.12 Stop control mode: manual/automatic (time, test force, etc.)
1.13 Host appearance size: 1700×860×1230mm
1.14 The quality, assembly quality and appearance quality of testing machine electrical equipment should comply with the relevant regulations of GB/T2611.
