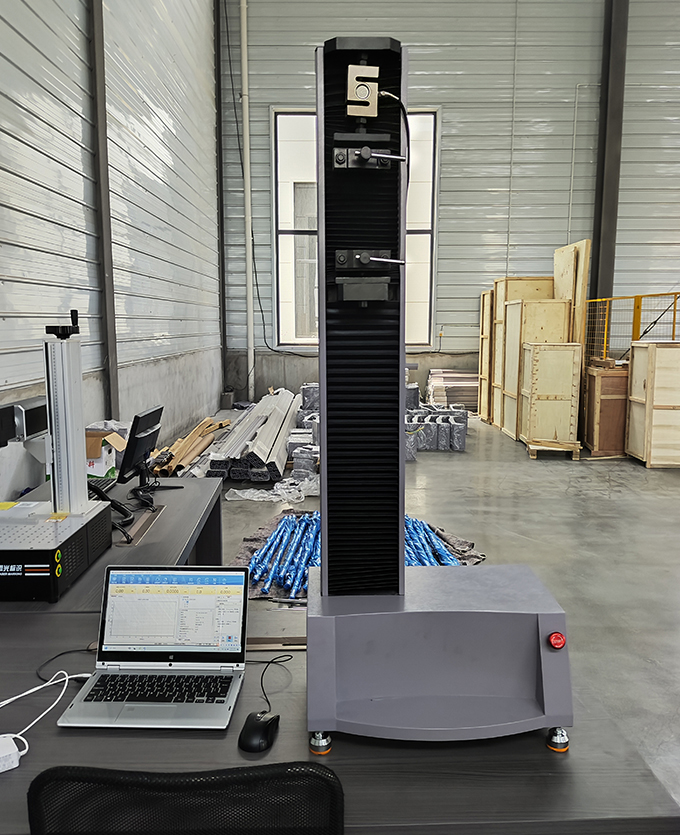

Textile comprehensive testing machine

The comprehensive textile testing machine adopts the constant velocity elongation (CRE) testing principle and is mainly used for testing mechanical properties such as stretching, tearing, bursting, constant elongation, constant load, elasticity, suture slippage, and peeling of various textiles. It is controlled by a microcomputer, digitally displays and stores the test strength.It is suitable for measuring the bursting strength, breaking tensile force and breaking elongation of cotton fabrics, knitted double-sided fabrics, chemical fiber fabrics, various threaded fabrics, and textile products such as socks and gloves.Equipped with special sensors, it can also test the breaking tension and breaking elongation of single yarns.Easy to operate, one machine can be used for multiple purposes.

【Comply with standards】:

GBT 19976-2005 Textiles - Determination of bursting strength

ASTMD3787 Standard test method for bursting strength of textile fabrics

FZ/T01030 Burst method for determination of seam strength and expansion of knitted fabrics and elastic woven fabrics

FZ/T 60019-1994 Test method for bursting strength of nonwoven fabrics

Breaking strength (strip method): GB/TT3923.1 ISO13934.1 ASTM D5035

(Grab sample method): GB/T3923.2, ISO13934.2 ASTM D5034

Tear strength (tongue tear): GB/T3917.2 ISO13937.2 ASTM D2261

(Trapezoidal tear): GB/T3912.3 ISO9074.4 ASTM D5587

Suture slippage: GB/T13772.1/2/3 ISO13936.1/2 ASTM D434

Peeling strength: FZ/T01085 ASTM D2724/3936 AATCC 136 FZ/T80007.1 FZ/T01010 FZ/T60011

Steel ball breaking: GB/T19976 FZ/T01030 ISO3303 ASTM D3787/6796

Flexible recovery: FZ/T70005 FZ/T70006 BS 4952

Single yarn strength: GB/T3916/14344 ISO2062 ASTM D 2256

Other standards: GB4689.6 GB/T13763 GB/T13773 GB/T14800 GB/T15788 GB/T16989 FZ/T01031 FZ/T20019 FZ/T60005 FZ/T60006 FZ/T70007 ISO 13935.1/2 ASTMD1683 ASTM D4964 ASTM D5733/5735 BS 3320

【Technical parameters】:

1. Main specifications

1.1 Strong test range: 0～5000N, force measurement accuracy ≤±0.5%F.S

1.2 Minimum graduation value of strong force: 0.01N

1.3 Diameter of center hole of cloth rolling head: ∮38mm

1.4 Breaking pin diameter: 20mm (optional ∮25mm ∮38mm)

1.5 Overall dimensions: 420(L)×420(W)×1200(H)mm

1.6 Weight: 80Kg

2. Technical characteristics:

2.1 Breaking marble falling speed: 100mm/min

2.2 Cloth rolling head type: movable and replaceable

2.3 Maximum descending stroke of breakout marble: 120mm

2.4 Effective maximum ejection stroke: 300mm

2.5 Transmission mode: synchronous wheel transmission

2.6 Power supply: Ac220V 50Hz
