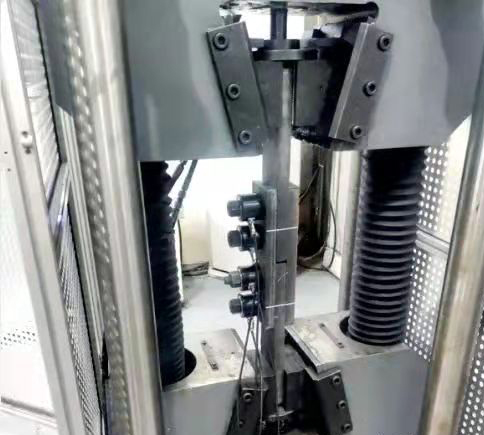

Bolt anti-slip coefficient tester

1. Product Overview

Shandong Huayan Bolt Anti-Slip Coefficient Detector is mainly used to detect the anti-slip coefficient of large hexagon head high-strength bolt connection pairs (M16, M20, M22, M24, M27, M30) and slip plates.There are four physical channels and 6 groups of 24 logical channels in total.It has parameter backup and recovery functions, automatic calibration function, and also has peak hold function, multiple bolt average value, standard deviation and other functions according to the detection requirements of high-strength bolts.

In order to facilitate the user to connect to the computer, the RS232 interface is set up, and the data can be transmitted to the computer (this function requires special ordering), and after further processing, the test report can be printed.

Applicable standards:GB50205-2001 "Steel Structure Engineering Acceptance Code"

2. Technical parameters

1. Measuring range: 30～400kN

2. Test force resolution: ±0.1kN

3. Test force indication error: ≤±2.0%

4. Display mode: LCD display

3. Main configuration

1. 1 LCD controller

2. M16 sensor-120kN 4 pieces

3. M20 sensor-180kN 4 pieces

4. M22 sensor-220kN 4 pieces

5. M24 sensor-260kN 4 pieces

6. M27 sensor-330kN 4 pieces

7. M30 sensor-400kN 4 pieces
