Architectural coating/putty testing equipment

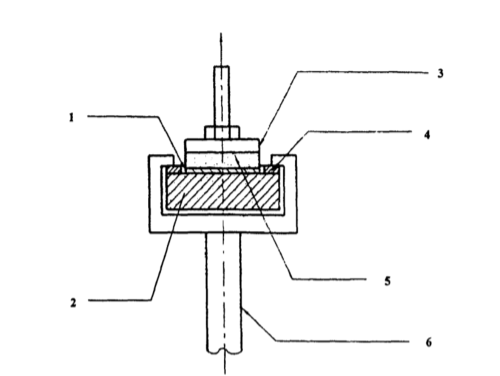

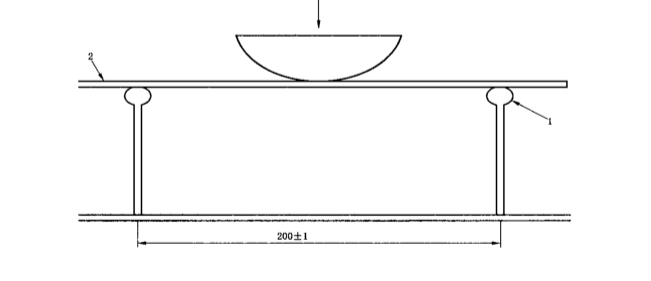

Shandong Huayan's architectural coating putty testing machine meets the bonding strength, elongation at break, and transverse deformation tests in standards such as JG/T 172-2014, JC/T 1015-2006, JC/T 907-2018, and GB/T12954.1-2008.It is suitable for tensile strength, elongation at break, tear strength, bonding strength mechanics, and transverse deformation tests of various coatings, putties, and adhesives.The system adopts microcomputer closed-loop control, has a wide and accurate loading speed and force measurement range, and has high accuracy and sensitivity for the measurement and control of load and displacement.With the addition of appropriate auxiliary tools, this equipment is also suitable for manufacturing industries such as metal, adhesives, pipes, profiles, aerospace, petrochemicals, waterproof membranes, wires and cables, textiles, fibers, rubber, ceramics, food, pharmaceutical packaging, geotextiles, films, wood, paper, etc., as well as product quality supervision departments at all levels. It is also suitable for teaching demonstrations in colleges and universities.

Technical parameters:

1. Style: Double pillar door type

2. Test force: 10KN (10000N)

3. Measuring range: 2%-100%;

4. Test force accuracy; better than ±1% of the indicated value

5. Accurate value of test force; 1N

6. Testing machine level: Level 1

7. Displacement resolution: 0.01mm;

8. Displacement measurement accuracy: ±0.5%;

9. Test space: 600mm (can be customized according to customer needs)

10. Horizontal experimental space: 400 (can be customized according to customer needs)

11. Displacement speed control range: 0.05mm/min～500mm/min

12. Displacement speed control accuracy: ±0.5%;

13. Testing machine size: about 815*360*1650mm

14. Testing machine weight: about 250KG

15. Appearance: Should comply with the requirements of GB/T2611

16. Complete set: meets standard requirements

17. Protection function: The testing machine has overload protection function

18. Power supply: 220V, 50Hz
