Rubber sealing belt clamping performance testing machine

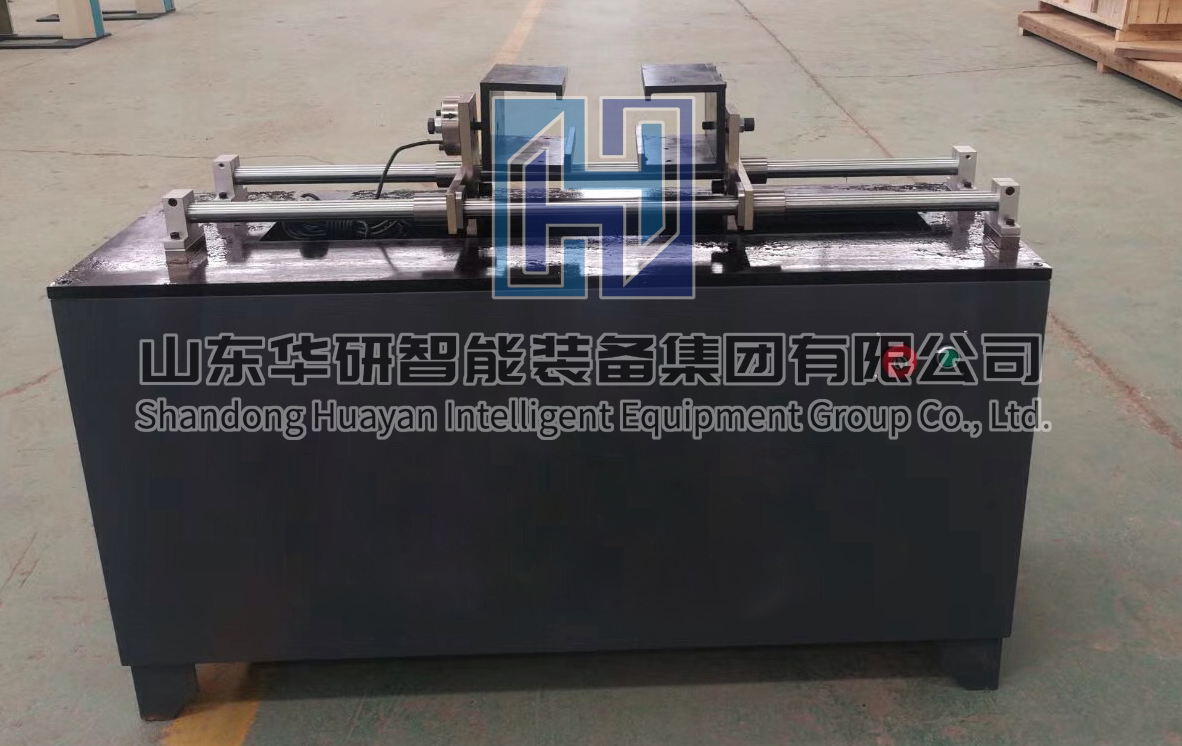

WDL-5 microcomputer controlRubber sealing belt clamping performance testing machineIt is a microcomputer-controlled electronic tensile testing machine specially designed by Shandong Huayan Testing Machine for rubber sealing strips in telescopic devices of highway bridges.The computer system controls the rotation of the high-precision stepper motor through the full digital controller and the speed control system. After deceleration by the deceleration system, the moving beam is driven by the precision ball screw pair to complete the repeated tensile mechanical property test of the sample. It is suitable for performance testing of rubber sealing tapes in highway bridges and other applications.The equipment complies with the specification requirements of JT/T327-2016 "General Technical Conditions for Telescopic Devices of Highway Bridges".

Rubber sealing belt clamping performance testing machineMain technical indicators:

1. Maximum test force: 500N

2. Test force measurement range: 2%--100%FS

3. Test force indication accuracy: better than ±1% of the indication value

4. Test force resolution: 1/300000 (no binning in the whole process or equivalent to 6 bales)

5. Crossbeam displacement measurement accuracy: resolution higher than 0.0025mm Deformation measurement accuracy: ±0.5%

6. Test speed range: 0.01-500mm/min, stepless speed regulation

7. Speed control accuracy: ±1% (0.01~10mm/min);

8. Constant force, constant deformation and constant displacement control range: 0.2%-100%FS

9. Constant force, constant deformation and constant displacement control accuracy:

When the setting value is less than 10% FS, the setting value is within ±1.0% of the setting value.

When the set value is ≥10%FS, within ±0.1% of the set value

10. Deformation rate control accuracy:

When the speed is <0.05%FS, it is within ±2.0% of the setting value.

When the speed is ≥0.05%FS, it is within ±0.5% of the setting value

11. Test space: 500mm

12. Machine power supply: single phase, 220V±10%, 50Hz

13. Working environment: room temperature -35℃, relative humidity not exceeding 80%

14. Host size: about 980×520×420 (mm).

15. Weight: about 500 kg

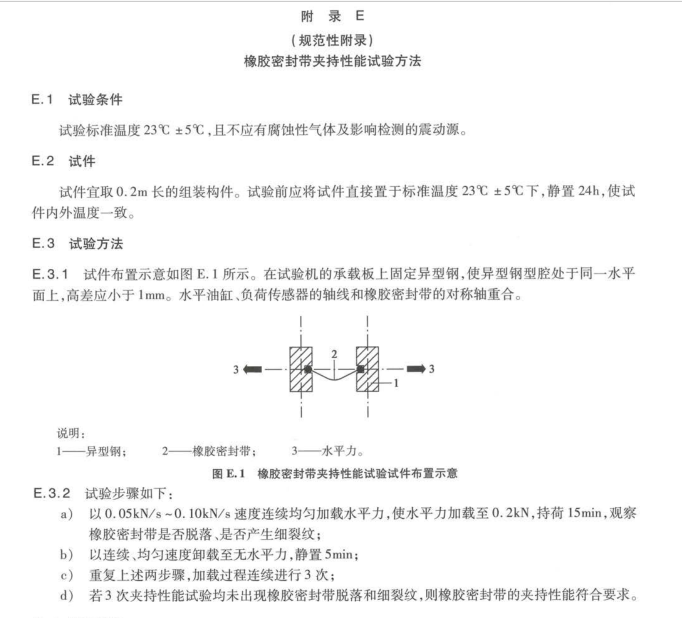

The specimen layout is shown in the figure.Fix the special-shaped steel on the load-bearing plate of the testing machine so that the special-shaped steel cavity is on the same level and the height difference should be less than 1mm.
