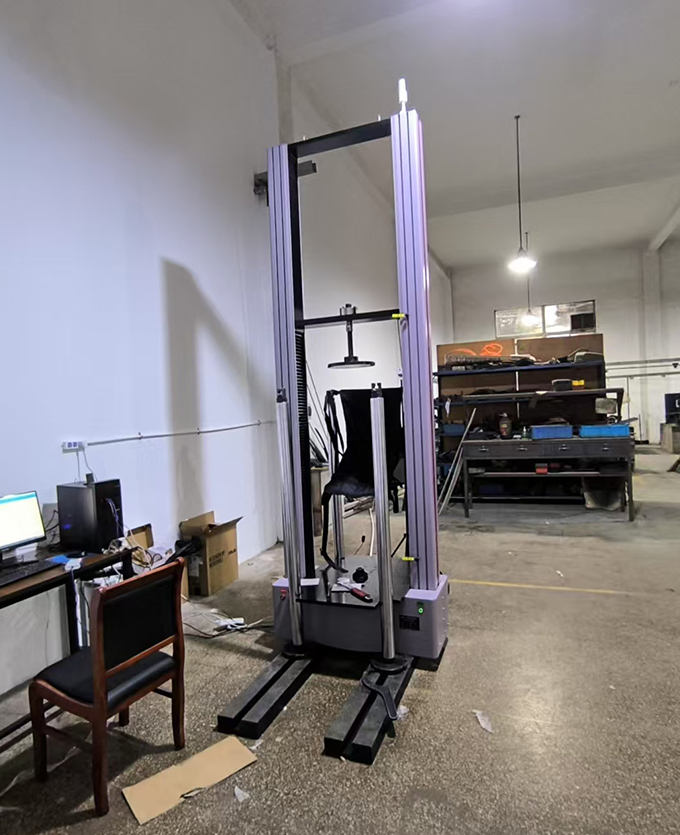

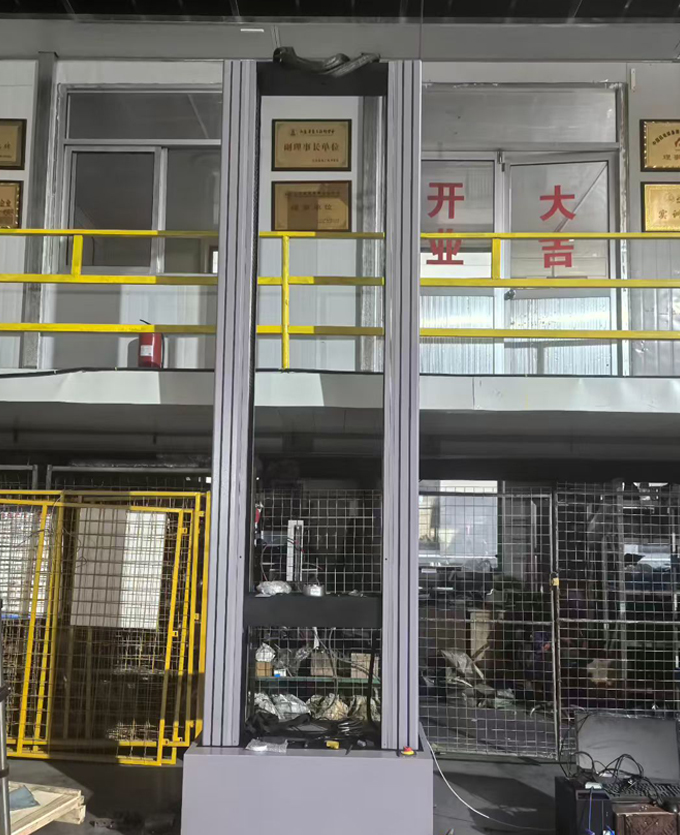

Comprehensive static load test of work protective equipment

Shandong Huayan's special testing machine for power tools meets the requirements of DL/T1741-2017, GB24542-2009, GB23469-2009, GB24538-2009 and other standards.Climbing pole foot buckle,Static load test of climbing boards, foot straps, safety ropes, insulating ropes, safety belts, guide rail self-locking devices, buffers, safety connectors and other operating protective equipment, one machine with multiple functions and easy to operate.The system adopts microcomputer closed-loop control, which can complete force maintenance tests, has a wide and accurate loading speed and force measurement range, and has high accuracy and sensitivity for the measurement and control of load and displacement.

Test force: 50kN (5T);

Test force binning: stepless speed regulation

Test range: 1%-100%FS

Test force accuracy; ±1%

Displacement resolution: 0.1mm

Displacement speed control range: 0.1mm/min～500mm/min

Displacement speed control accuracy: ±1%

Testing machine level: Level 1

Deformation indication error: ≤±(50+0.15L)

Test space: effective test width 400mm (can be customized according to requirements)

Effective stretching space 2100mm (can be customized according to requirements)

Appearance: should comply with the requirements of GB/T2611

Complete set: meets standard requirements

Protection functions: overload protection, limit protection, electronic control system overcurrent, overvoltage, overheating and overtemperature protection.

Machine net weight: about 400Kg

Testing machine size: about 810*360*3850 mm

Power supply: 220V, 50Hz
