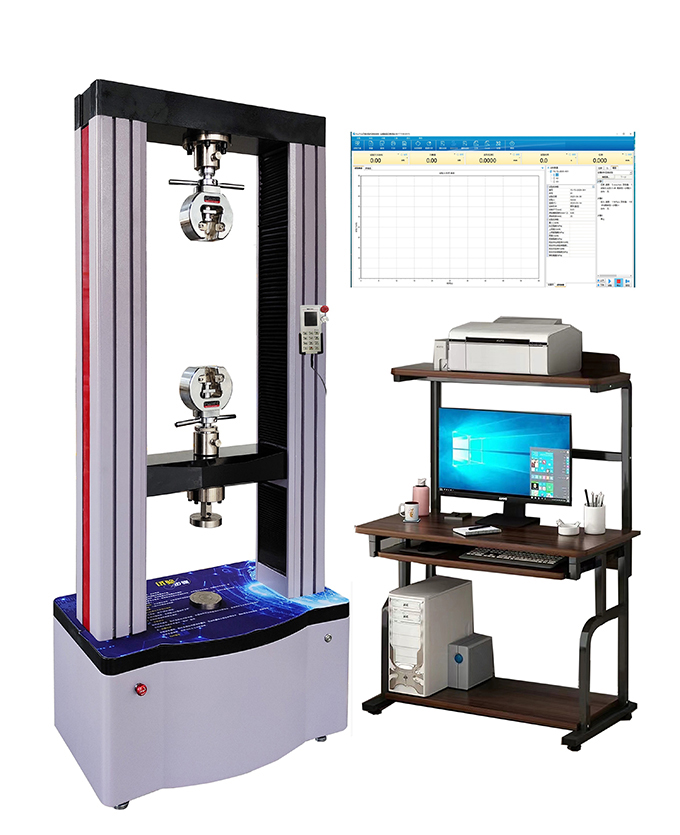

Seat belt static load mechanics testing machine

Seat belt static load testing machine is mainly used for static load testing of seat belt main belts and safety ropes; static load testing of components; deformation testing of buffers and accidental opening force testing.

1. Use a high-precision, fully digital speed control system and precision reducer to drive a precision gapless screw pair for testing, achieving a wide range of test speed adjustments. The test process has low noise and smooth operation.
2. The universal joint adopts a cross latch structure and has a swing angle limiting function. On the one hand, it facilitates sample clamping and makes the test concentric. On the other hand, it effectively eliminates the impact of irregular samples on the sensor.
3. Touch key operation mode, LCD display real-time display.The display interface can display the test method selection interface, test parameter selection interface, test operation and result display interface and curve display interface, which is convenient and fast.
4. It has two protection modes: mechanical protection and software. It will automatically stop when the height exceeds the limit, and it will automatically stop when the rated load exceeds; and an over-current emergency stop switch.

Technical indicators

1. Model: double arms (microcomputer control)
2. Maximum test force: 50kN
3. Accuracy level: Level 1
4. Test force accuracy: better than ±1% of the indicated value
5. Test force: minimum resolution 0.01N
6. Displacement measurement: resolution is 0.01mm
7. Deformation accuracy: better than ±1%
8. Speed adjustment range: 1mm/min~~200 mm/min
9. Test stroke: 600mm (can be customized according to customer needs)
10. Stretch space: 600mm (can be customized according to customer needs)
11. Compression space: 600mm (can be customized according to customer needs)
12. Test protection function: overload protection
13. Safety protection device: limit switch
14. Power supply: 220V 50Hz

Meet standards

GB6095-2009 "Safety Belt"
GB6096-2009 "Seat Belt Inspection Method"
