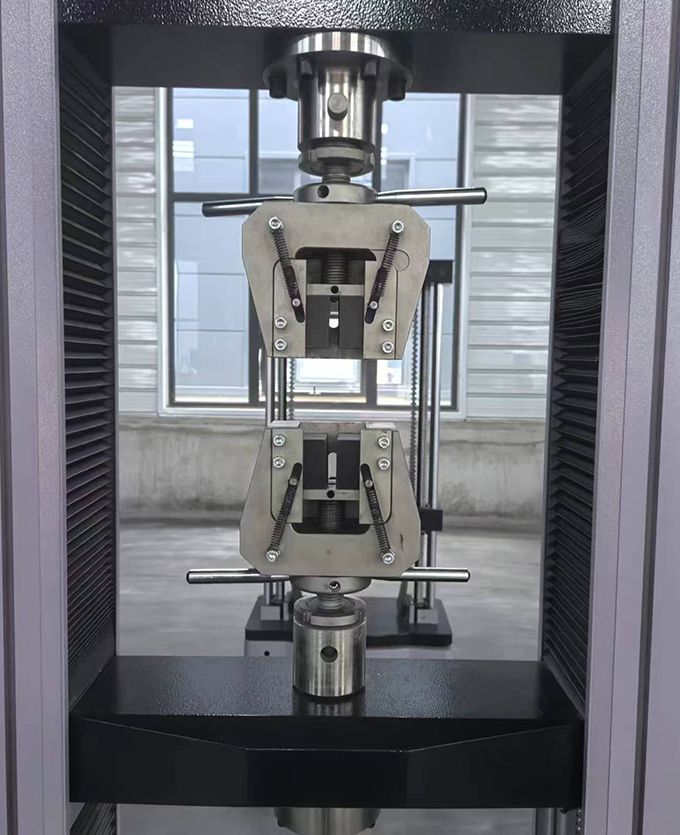

Concrete axial tensile testing machine

It is used for experimental testing and research on the mechanical properties of concrete axial tensile test force, axial tensile strength, ultimate tensile value, and tensile elastic modulus.According to the concrete axial tension test method in SL352-2006 Hydraulic Concrete Test Regulations, concrete axial tension specimens and embedded parts: ring tension A (100x100x550mm); tie rod tension B (M16/￠150x500mm); clamp tension C (100x100x600mm); tie plate tension D (￠150x300~500mm);

Product parameters:

1 Test force 100kN

2 Testing machine level 0.5/1.0

3 Load measurement range 0.2%～***FS (level 0.5)/1%～***FS (level 1.0)

4 Relative error of indication value ±0.2% (level 0.5) ±1% (level 1.0)

5 Test force resolution 1/±500000FS (the resolution remains unchanged throughout the process)

6 Deformation measurement range 0.2%～***

7 Force control speed adjustment range 0.005%～5%FS/S

8 Force control speed control accuracy When the speed is <0.05%FS, it is within ±1% of the setting value;

When the rate is ≥0.05%FS, it is within ±0.5% of the set value;
