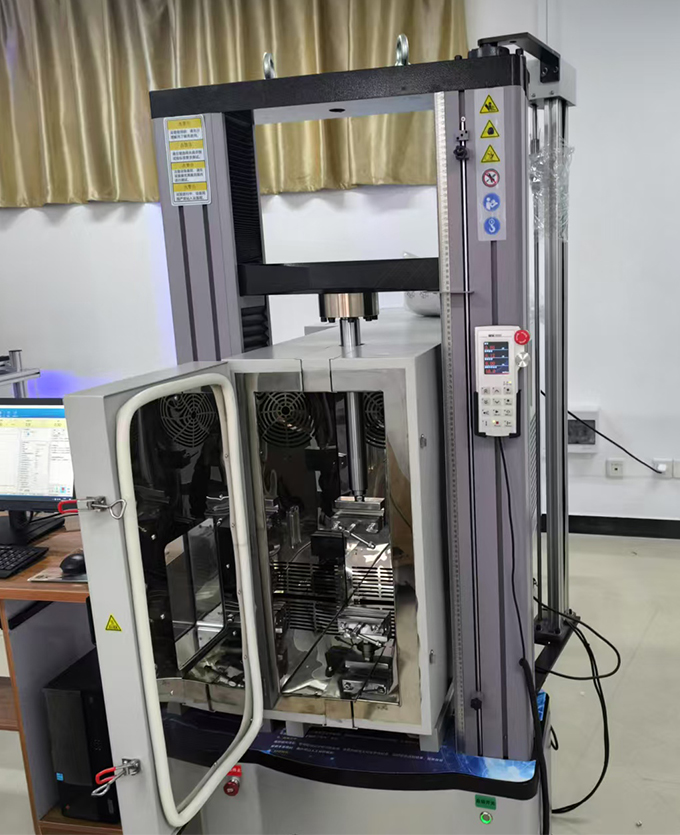

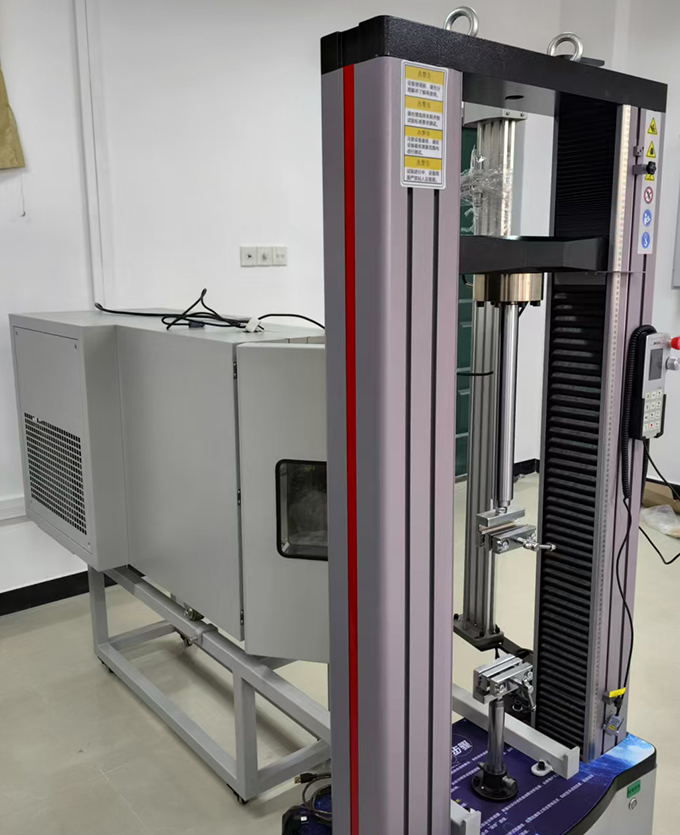

Silicone structural sealant testing machine for construction

The silicone structural sealant testing machine for construction developed and produced by Shandong Huayan is mainly used for tensile performance testing of various silicone glue composite materials, such as tensile adhesion, elongation, tensile modulus, high temperature tensile adhesion, low temperature tensile adhesion and other mechanical property indicators.It meets JG/T 475-2015, JG/T 471-2015, GB/T 13477-2017, GB 16776-2005 and other standards. The equipment system adopts microcomputer closed-loop control, has a wide and accurate loading speed and force measurement range, and has high accuracy and sensitivity for the measurement and control of load and displacement.With the addition of appropriate auxiliary tools, this equipment is also suitable for manufacturing industries such as metal, adhesives, pipes, profiles, aerospace, petrochemicals, waterproof membranes, wires and cables, textiles, fibers, rubber, ceramics, food, pharmaceutical packaging, geotextiles, films, wood, paper, etc., as well as product quality supervision departments at all levels. It is also suitable for teaching demonstrations in colleges and universities.

Technical parameters:

1. Style: Double pillar door type
2. Test force: 50KN
3. Measuring range: 2%-100%;
4. Test force accuracy; better than ±1% of the indicated value
5. Accurate value of test force; 1N
6. Testing machine level: Level 1
7. Displacement resolution: 0.01mm;
8. Displacement measurement accuracy: ±0.5%;
9. Test space: 600mm (can be customized according to customer needs)
10. Horizontal experimental space: 650 (can be customized according to customer needs)
11. Displacement speed control range: 0.1mm/min～300mm/min
12. Displacement speed control accuracy: ±0.5%;
13. Testing machine size: about 1200mmⅹ1200mmⅹ2000mm
14. Testing machine weight: about 500KG
15. Appearance: Should comply with the requirements of GB/T2611
16. Complete set: meets standard requirements
17. Protection function: The testing machine has overload protection function
18. Power supply: 220V, 50Hz
