Keel mechanical performance testing machine

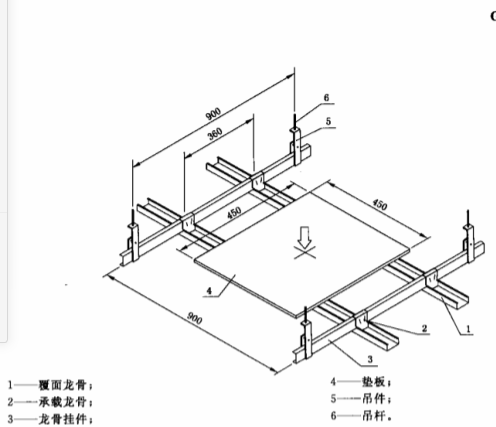

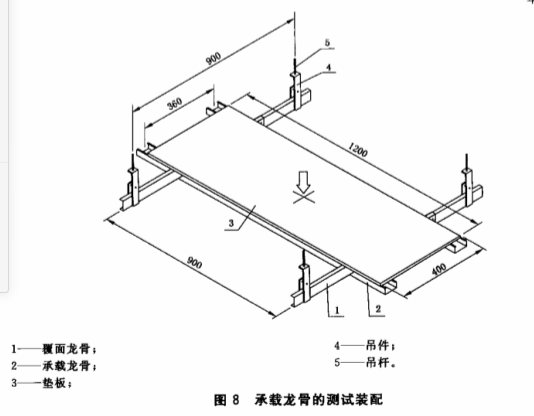

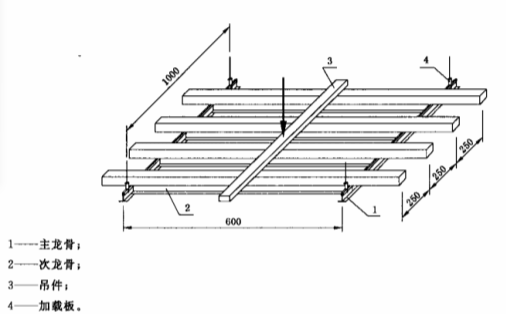

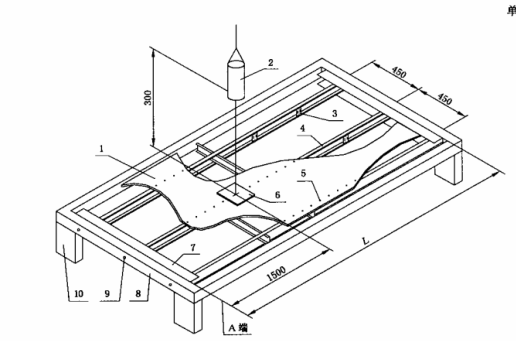

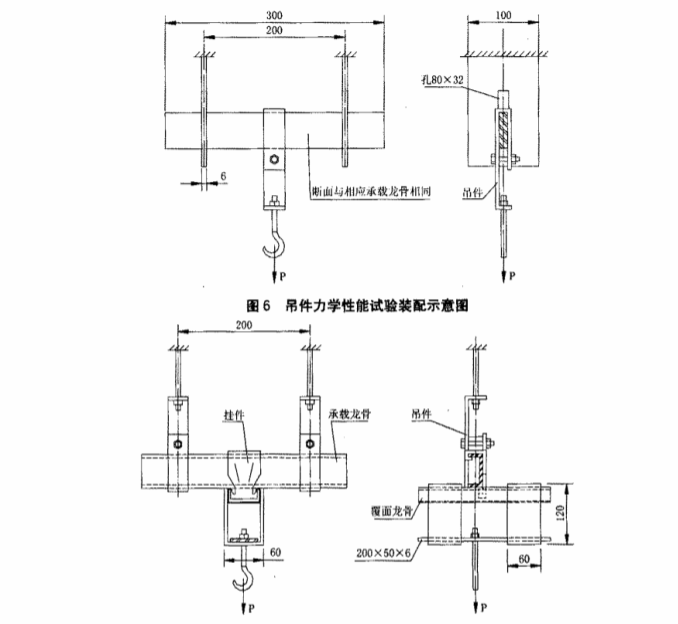

The mechanical performance testing equipment of light steel keels for construction is mainly used for pressure and static load performance testing of light steel keels for construction and tensile performance testing of light steel keel accessories (hanging parts and pendants) for construction.In addition, simple tooling can also test the mechanical properties such as tension, compression, bending, shearing, tearing, and peeling of metals, non-metals, and composite materials.

GB/T 11981-2008 "Light steel keel for construction"

JC/T 558-2007 "Light steel keel accessories for construction"

JC/T 698-2010 "Gypsum Blocks"

GBT19766-2016 "Natural Marble Building Panels"

GBT4100-2015 "Ceramic Tiles"

JCT746-2007 "Concrete Tiles"

GB/T 228.1-2010 "Room Temperature Tensile Test Method for Metallic Materials"

GB/T 16491-2008 "Electronic Universal Testing Machine"
Technical parameters:

1. Style: Double pillar door type
2. Test force: 10KN (10000N)
3. Measuring range: 2%-100%;
4. Test force accuracy; better than ±1% of the indicated value
5. Accurate value of test force; 1N
6. Testing machine level: Level 1
7. Displacement resolution: 0.01mm;
8. Displacement measurement accuracy: ±0.5%;
9. Test space: 600mm (can be customized according to customer needs)
10. Horizontal experimental space: 1000*1000mm (can be customized according to customer needs)
11. Displacement speed control range: 0.1mm/min～300mm/min
12. Displacement speed control accuracy: ±0.5%;
13. Testing machine size: about 1200mmⅹ1200mmⅹ2000mm
14. Testing machine weight: about 1000KG
15. Appearance: Should comply with the requirements of GB/T2611
16. Complete set: meets standard requirements
17. Protection function: The testing machine has overload protection function
18. Power supply: 220V, 50Hz
