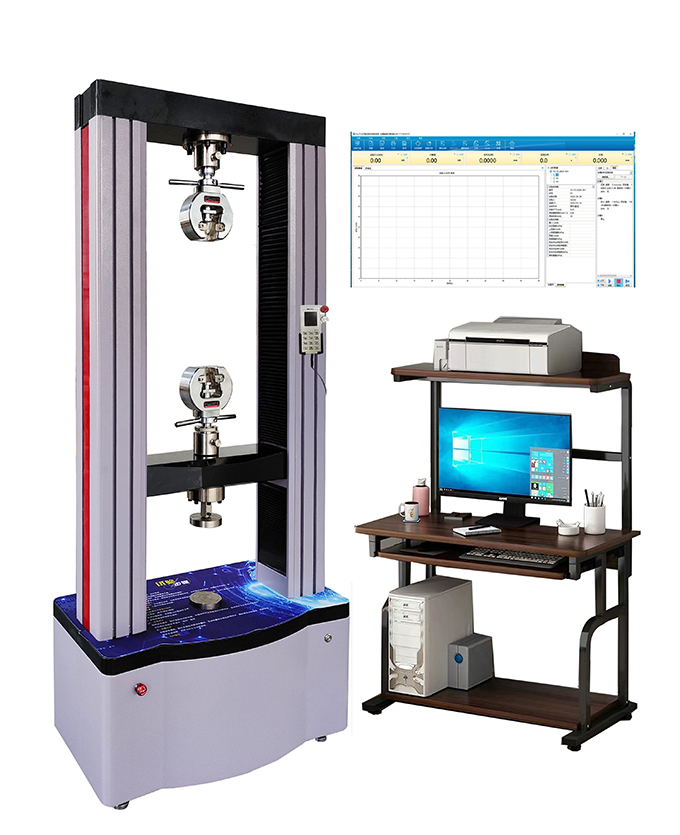

Medical skim gauze tensile strength testing machine

Product use:

Medical skim gauze tensile strength testing machine static torsionTesting machineMainly used for axial, torsional, biaxial or conventional static, fatigue and dynamic tests.This model is widely used in medical equipment, orthopedics and other medical material research and other product testing applications.Electronic testing machines are mainly used for static, fatigue and dynamic tests. This model has the characteristics of advanced power unit, double column frame, sensors and advanced controller and control software. The system can be used to measure force, speed and stroke.

Product features:

1. Smooth two-column rack with adjustable crosshead, including T-shaped base, heightened rack, wider column space, electric crosshead lift, floor-standing version and twist attachment;

2. The stroke of the actuator is 450mm;

3. Low maintenance cost, all-electric drive, noiseless motor;

4. Two optional control modes;

5. More optional accessories, such as tensile fixtures, compression fixtures, bending fixtures, environmental boxes and extensometers; electronic fatigue testing machine parameters

6. Application: components, metal materials, composite materials, medical equipment, etc.

Technical parameters:

Maximum static load: ±100kN

Maximum dynamic load: ±100kN

Maximum torque: 562Nm

Maximum speed: 1m/s

Stroke: ±225mm

Frequency: 0-30Hz

Voltage: 220V/60Hz TR830LE7

Column spacing: 500mm (heightened type 810mm)

Column height: 1200mm (widened type 1500mm)

Vertical test space: 0-1050mm (heightened type: 1350mm)

Base size: 165x560mm (width)

Weight: 295kg
